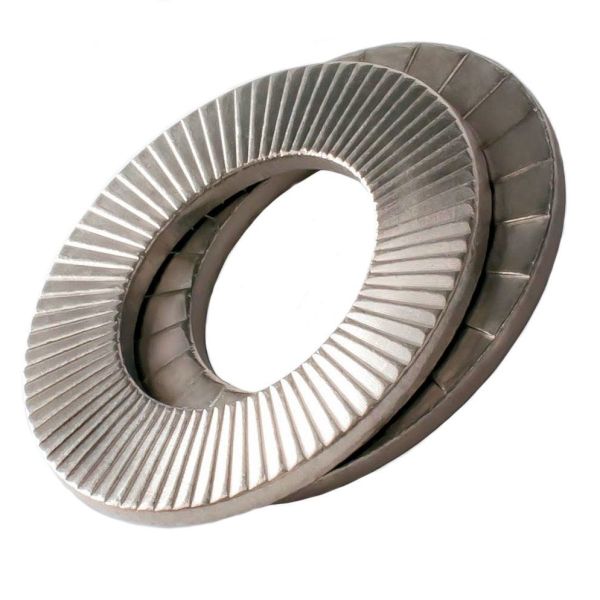

Nord-Lock 1 1/2in Locking Washer Carbon Steel 2192
Nord-Lock 1 1/2in Locking Washer Carbon Steel 2192 is a carbon steel wedge-locking washer pair for 1 1/2 in bolts on vibrating structural steel and rotating equipment.
- The pair covers a typical 1 1/2 in bearing face with a 58.5 mm outer diameter
- Delta Protekt zinc flake coating is used on carbon steel-to-steel joints
- The pack holds one pair for a single 1 1/2 in joint
$8.28
Availability:
In stock
( 1 Available )
Nord-Lock 1 1/2in Locking Washer Carbon Steel 2192
Nord-Lock 1 1/2in Locking Washer Carbon Steel 2192 is a carbon steel wedge-locking washer pair for 1 1/2 in bolts. It is used on vibrating structural steel and rotating equipment where a standard 58.5 mm outer diameter covers the bearing face. Delta Protekt zinc flake coating and 465 HV1 min hardness keep the pair on steel-to-steel joints through vibration. The coat holds a minimum of 1,000 hours salt spray.
Key Features
- The pair covers a typical 1 1/2 in bearing face with a 58.5 mm outer diameter
- Delta Protekt zinc flake coating on carbon steel
- Hardness 465 HV1 min
- One pair per pack for a single 1 1/2 in joint
- One pair under the head or nut on tapped holes, two pairs on through holes
- Temperature range -58 F to 392 F
Applications
- Vibrating structural steel on 1 1/2 in / M39 bolts.
- Rotating equipment on 1 1/2 in carbon steel joints.
- Tapped holes with a pair under the 1 1/2 in bolt head.
- Through holes with a pair under the head and a pair under the nut.
Technical Specifications
| Property | Value |
|---|---|
| Bolt size | 39 mm (1 1/2 in) |
| Inner diameter (d) | 40.4 mm |
| Outer diameter (D) | 58.5 mm |
| Thickness (T) | 5.8 mm |
| Material | Steel EN 1.7182 |
| Hardness | 465 HV1 min |
| Temperature range | -58 F to 392 F (-50 C to 200 C) |
| Pairs per pack | 1 |
| Manufacturer shop article | 1558 |
Product documents: Nord-Lock steel NL39
Frequently Asked Questions
What work is Nord-Lock NL39 used on?
Nord-Lock NL39 is used on vibrating structural steel and rotating equipment with 1 1/2 in bolts.
What size is Nord-Lock NL39?
Nord-Lock NL39 is a 1 1/2 in pair with a 40.4 mm inner diameter, 58.5 mm outer diameter, and 5.8 mm thickness.
What Delta Protekt coat hours does Nord-Lock NL39 hold on 1 1/2 in carbon?
Nord-Lock NL39 holds a Delta Protekt zinc flake coat with a minimum of 1,000 hours salt spray.
What 465 HV1 min hardness does Nord-Lock NL39 meet on EN 1.7182?
Nord-Lock NL39 meets a through-hardened hardness of 465 HV1 min on EN 1.7182 carbon steel.
What one-pair pack does Nord-Lock NL39 ship for a 1 1/2 in joint?
Nord-Lock NL39 comes one pair per pack for a single 1 1/2 in joint.
What 58.5 mm bearing face does Nord-Lock NL39 cover on M39 carbon?
Nord-Lock NL39 covers a typical 1 1/2 in bearing face with a 58.5 mm outer diameter.
