Nord-Lock 1in Locking Washer Carbon Steel 1328

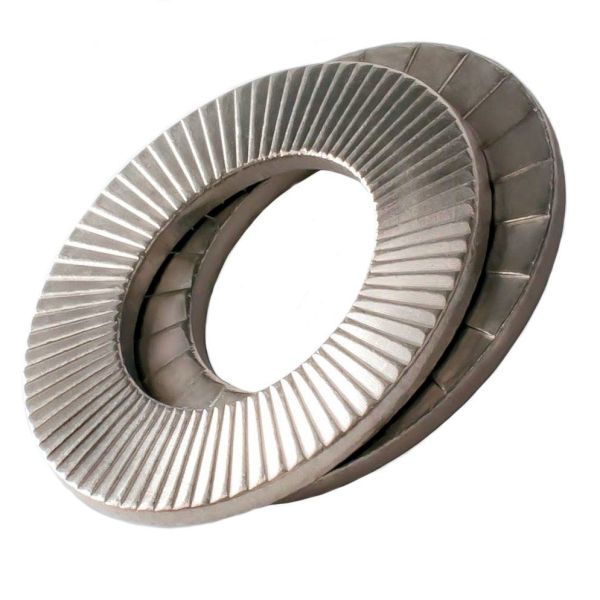

Nord-Lock 1in Locking Washer Carbon Steel 1328 is a carbon steel wedge-locking washer pair for 1 in bolts on vibrating structural steel and rotating equipment.
- The pair covers a typical 1 in bearing face with a 39 mm outer diameter
- Delta Protekt zinc flake coating is used on carbon steel-to-steel joints
- The pack holds two pairs for repeating 1 in joints
$3.36
Availability:
In stock
( 51 Available )
Nord-Lock 1in Locking Washer Carbon Steel 1328
Nord-Lock 1in Locking Washer Carbon Steel 1328 is a carbon steel wedge-locking washer pair for 1 in bolts. It is used on vibrating structural steel and rotating equipment where a standard 39 mm outer diameter covers the bearing face. Delta Protekt zinc flake coating and 465 HV1 min hardness keep the pair on steel-to-steel joints through vibration. The coat holds a minimum of 1,000 hours salt spray.
Key Features
- The pair covers a typical 1 in bearing face with a 39 mm outer diameter
- Delta Protekt zinc flake coating on carbon steel
- Hardness 465 HV1 min
- Two pairs per pack for repeating 1 in joints
- One pair under the head or nut on tapped holes, two pairs on through holes
- Temperature range -58 F to 392 F
Applications
- Vibrating structural steel on 1 in / 25.4 mm bolts.
- Rotating equipment on 1 in carbon steel joints.
- Tapped holes with a pair under the 1 in bolt head.
- Through holes with a pair under the head and a pair under the nut.
Technical Specifications
| Property | Value |
|---|---|
| Bolt size | 25.4 mm (1 in) |
| Inner diameter (d) | 27.9 mm |
| Outer diameter (D) | 39 mm |
| Thickness (T) | 3.4 mm |
| Material | Steel EN 1.7182 |
| Hardness | 465 HV1 min |
| Temperature range | -58 F to 392 F (-50 C to 200 C) |
| Pairs per pack | 2 |
| Manufacturer shop article | 3051 |
Product documents: Nord-Lock steel NL1"
Frequently Asked Questions
What work is Nord-Lock NL1 used on?
Nord-Lock NL1 is used on vibrating structural steel and rotating equipment with 1 in bolts.
What size is Nord-Lock NL1?
Nord-Lock NL1 is a 1 in pair with a 27.9 mm inner diameter, 39 mm outer diameter, and 3.4 mm thickness.
What coating does Nord-Lock NL1 have?
Nord-Lock NL1 has a Delta Protekt zinc flake coating on carbon steel.
What hardness does Nord-Lock NL1 have?
Nord-Lock NL1 has a hardness of 465 HV1 min.
What pack does Nord-Lock NL1 come in?
Nord-Lock NL1 comes two pairs per pack.
What through-hole setup does Nord-Lock NL1 use?
Through holes on Nord-Lock NL1 take a pair under the head and a pair under the nut. Tapped holes take one pair under the head or nut.
