Kraft Tool 24 Dia Chamfer Tube Bronze Edger ProForm CF385PF

Kraft Tool chamfer tube edger is a one-piece bronze hand tool for a 45° chamfer on 24 in round concrete piers. Belt-polished blade with a 1 in lip and ProForm handle.

Fits 24 in diameter round support columns
45° chamfer with a 1 in lip on the cylinder
ProForm handle on a belt-polished bronze casting

$63.76

Drop Shipped

Details

Kraft Tool CF385PF - 24 In Chamfer ProForm Handle

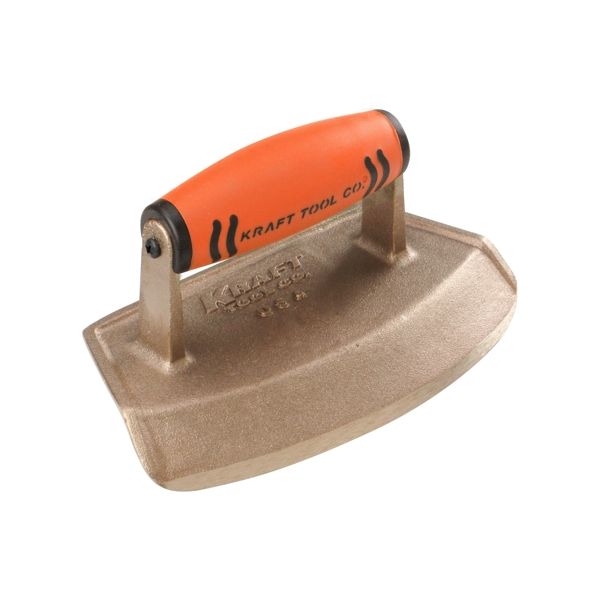

Kraft Tool CF385PF is a one-piece bronze chamfer-tube edger that fits 24 in round support columns. It is used on concrete piers to finish a 45° chamfer along the cylinder top. The 7-5/8 in belt-polished blade has a 1 in lip and turned-up edges so the tool rides the pier cleanly. The 4-1/2 in orange-and-black ProForm handle is secured to the casting.

Key Features

Fits 24 in round support piers
7-5/8 in belt-polished bronze blade
45° lip, 1 in down the cylinder
ProForm CF047PF, 4-1/2 in
Orange-and-black grip, easy to find when wet

Applications

24 in round support columns.
45° top-edge chamfer on 24 in piers.
Circle work on plastic concrete.

Technical Specifications

Property	Value
Pattern	24 in (609.6 mm) tube chamfer
Blade length	7-5/8 in (193.7 mm)
Blade width	4 in (101.6 mm)
Radius	45°
Lip	1 in (25.4 mm)
Handle material	ProForm soft grip
Handle length	4-1/2 in (114.3 mm)
Finish	Belt polished
