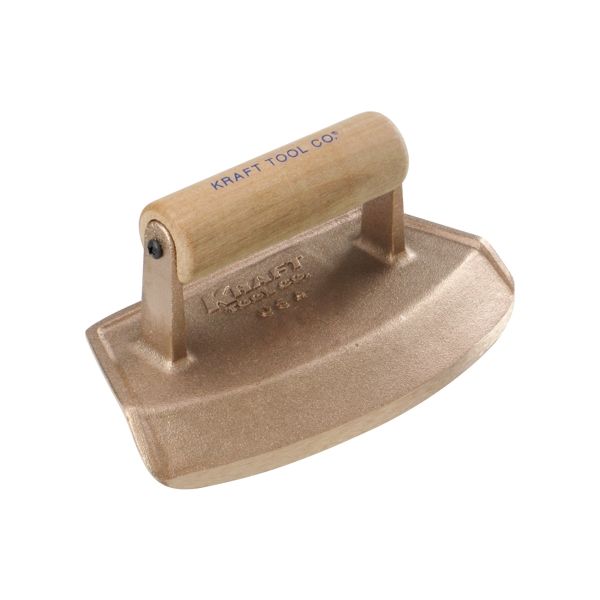

Kraft Tool Bronze Chamfer Tube Edger 36in Wood Handle CF387
The Kraft Tool 36 in chamfer tube bronze edger is a one-piece belt-polished bronze tool for chamfering round support piers, fitted with a smooth wood handle.
- Fits 36 in diameter round support columns
- 1 in lip at a 45 degree chamfer
- Smooth wood handle on the bronze casting
$61.06
Drop Shipped
Kraft Tool CF387 - 36 In Chamfer Wood Handle
Kraft Tool CF387 is a one-piece bronze chamfer edger sized for 36 in round support columns, with a smooth wood handle. It is used to finish a 45° chamfer on the top of a concrete pier. The 7-3/4 in belt-polished blade has a 1 in lip and turned-up edges so the curved blade follows the column. The 4-1/2 in wood handle (CF047) is secured to the casting.
Key Features
- Fits 36 in round columns
- Belt-polished 7-3/4 in bronze
- 1 in lip at 45°
- Wood edger handle, 4-1/2 in
- Smooth wood secured to the casting
Applications
- 36 in round support columns.
- 45° chamfer on round piers.
- Circle work in plastic concrete.
Technical Specifications
| Property | Value |
|---|---|
| Pattern | 36 in (914.4 mm) tube chamfer |
| Blade length | 7-3/4 in (196.9 mm) |
| Blade width | 4 in (101.6 mm) |
| Radius | 45° |
| Lip | 1 in (25.4 mm) |
| Handle material | Wood |
| Handle length | 4-1/2 in (114.3 mm) |
| Finish | Belt polished |
Frequently Asked Questions
What columns is Kraft Tool CF387 used on?
36 in round concrete support columns.
What size is Kraft Tool CF387?
36 in diameter tube chamfer. Blade is 7-3/4 in long by 4 in wide.
What is the lip of Kraft Tool CF387?
1 in at 45° to finish the top of the cylinder.
What is the bronze of Kraft Tool CF387?
One-piece belt-polished bronze casting.
What is the handle length of Kraft Tool CF387?
4-1/2 in wood edger (CF047).
What is the tracking of Kraft Tool CF387?
The curved blade tracks in a circle around the column without gouging.
