Kraft Tool 18in Diameter Chamfer Tube Bronze Edger Wood CF384

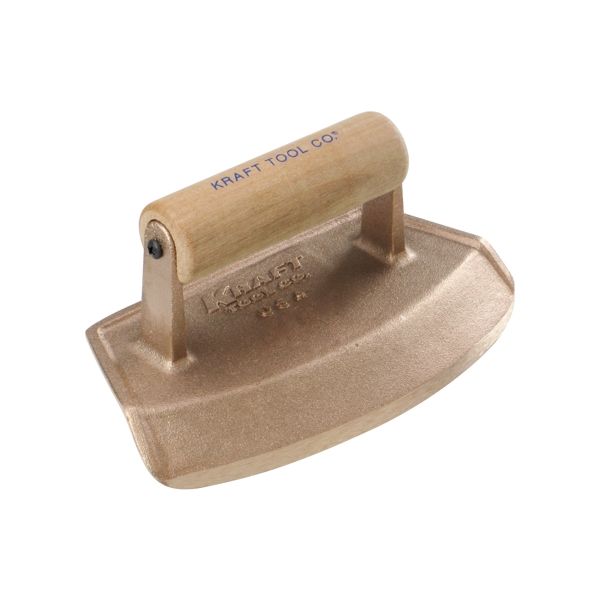

Kraft Tool chamfer tube edger is a one-piece bronze hand tool for a 45° chamfer on 18 in round concrete piers. Belt-polished blade with a 1 in lip and wood handle.
- Fits 18 in diameter round support columns
- 45° chamfer with a 1 in lip on the cylinder
- wood handle on a belt-polished bronze casting
$42.69
Drop Shipped
Kraft Tool 18" Diameter Chamfer Tube Bronze Edger, Wood Handle
Kraft Tool chamfer tube edger is a one-piece bronze hand tool for putting a 45° chamfer on round concrete support piers. The curved, belt-polished blade tracks a 18 in diameter column, and a 1 in lip drops down the cylinder so the top edge finishes even. Turned-up edges keep the bronze from gouging plastic concrete. Smooth wood edger handle (CF047) is secured to the casting for a traditional grip on the pier. Also in 12 in, 16 in.
Looking for another size?
Key Features
- One-piece belt-polished bronze casting
- Fits 18 in diameter round support piers
- 45° chamfer, 1 in lip down the cylinder
- Turned-up edges to move without gouging
- Slope can vary with wetness and pressure
- wood handle secured to the casting
Applications
- Round concrete support piers and columns
- 45° top-edge chamfer to limit chipping
- Circular tracking on plastic concrete
Technical Specifications
| Property | Value |
|---|---|
| Type | Chamfer tube bronze edger |
| Tube diameter | 18 in (457.2 mm) tube chamfer |
| Blade length | 7-1/2 in (190.5 mm) |
| Blade width | 4 in (101.6 mm) |
| Radius / chamfer | 45° |
| Lip | 1 in (25.4 mm) |
| Blade material | Bronze, belt polished |
| Handle | Wood edger, 4-1/2 in (CF047) |
| Handle material | Wood |
| Working time | N/A |
| Country of origin | United States with global materials |
| MPN | CF384 |
Frequently Asked Questions
What is a chamfer tube edger?
A curved bronze edger that puts a 45 degree, 1 in lip chamfer on round concrete support piers. This tool fits 18 in diameter columns.
What handle is on this tool?
Wood edger, 4-1/2 in (CF047).
Can I change the chamfer slope?
Kraft says the slope can vary with how wet the concrete is and the angle and pressure you apply.
Will it gouge the pier?
Turned-up edges are meant to move through plastic concrete without gouging.
What other diameters are listed?
Bronze chamfer tube edgers are listed in 12, 16, 18, and 24 in diameters (24 in wood is not in this catalog). Other live diameters: 12 in, 16 in.
Working time?
N/A. Hand finishing tool, not a chemical product.
What is the published model?
CF384.
