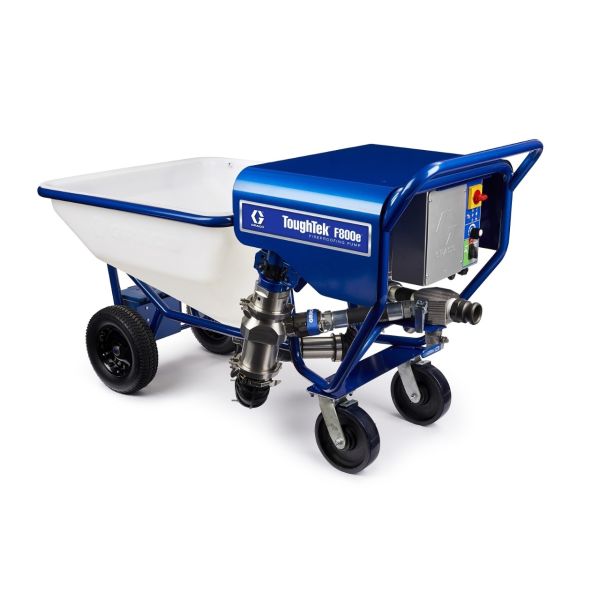

Graco ToughTek F800e System 25M800
Graco ToughTek F800e is a high-output electric piston pump, part 25M800, for cementitious fireproofing on medium and large jobs. The pump runs on 230V, 30A single-phase and sprays up to 40 bags an hour.
- Output is up to 40 bags an hour on fireproofing
- The pump runs on 230V 30A single-phase
- A 2 in camlock fits large fireproofing hose
$26,080.00
Graco ToughTek F800e
Graco ToughTek F800e is a high-output electric piston pump, part 25M800, for cementitious fireproofing on medium and large jobs. The pump runs on 230V, 30A single-phase and sprays up to 40 bags an hour. Working pressure is 600 psi. The hopper is 41 gallons. Motor is 4.5 hp brushless. Dry weight is 385 lb. Outlet is 2 in male camlock. Temp range is 32 F to 120 F.
Key Features
- High-output electric piston pump is used on medium and large fireproofing jobs
- Pump runs on 230V, 30A single-phase
- Output is up to 40 bags an hour
- Working pressure is 600 psi
- 2 in camlock fits large fireproofing hose
Applications
- Medium and large cementitious fireproofing jobs
- SFRM work on a 230V, 30A single-phase circuit
- Jobs that already run 2 in camlock fireproofing hose
Technical Specifications
| Property | Value |
|---|---|
| Type | Electric piston pump |
| Part number | 25M800 |
| Power | 230V, 30A, 1 phase |
| Motor | 4.5 hp brushless |
| Output | Up to 40 bags an hour |
| Max pressure | 600 psi |
| Hopper | 41 gal |
| Outlet | 2 in male camlock |
| Weight | 385 lb |
| Temp range | 32 F to 120 F |
Product documents: Graco ToughTek F800e Sell Sheet (PDF)
Frequently Asked Questions
What jobs is Graco ToughTek F800e used on?
Cementitious fireproofing on medium and large jobs.
What power does Graco ToughTek F800e need?
230V, 30A single-phase.
What output does Graco ToughTek F800e have?
Up to 40 bags an hour.
What outlet size does Graco ToughTek F800e have?
2 in male camlock.
What hopper size does Graco ToughTek F800e have?
41 gallons.
What pressure does Graco ToughTek F800e have?
600 psi.
