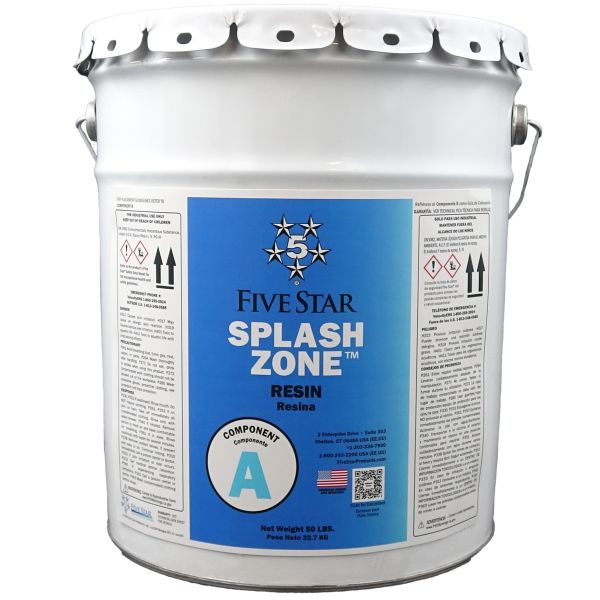

Five Star Splash Zone 100lb Kit

Five Star Splash Zone is a 100% solids, two-component epoxy putty compound recommended for top-sealing of Five Star PileForm F (FRP) jackets at, above, or below the waterline in fresh or salt water splash zones. It forms an excellent bond to concrete, steel, wood, aluminum, fiberglass and Five Star PileForm F (FRP) jackets.

Top-seals pile jackets at, above, or below the waterline
Applied underwater in fresh or salt splash zones
Bonds to concrete, steel, wood, and FRP

$1,176.93

Details

Five Star Splash Zone

Five Star Splash Zone is a 100% solids, two-component epoxy putty for top-sealing pile jacket repairs at, above, or below the waterline. It bonds to concrete, steel, wood, aluminum, fiberglass, and FRP pile jackets in fresh or salt splash zones. Applied underwater, it cures to an abrasion- and impact-resistant seal on wet or dry marine substrates in the splash zone.

Key Features

Applied at, above, or below the waterline
100% solids, solvent-free putty
Can be applied underwater
Bonds to concrete, steel, wood, fiberglass, and aluminum
Resistant to solvents and chemicals
Hand-applied in 1/8 to 1/2 inch lifts

Applications

Top-sealing of FRP pile jacket repairs
Splash-zone work at, above, or below the waterline
Freshwater or saltwater marine repairs
Hand-applied sealing of concrete, steel, wood, and fiberglass

Technical Specifications

Property	Value
Type	Two-component 100% solids epoxy putty
Mix ratio	1:1 by volume
Color	Medium gray
Working time at 70°F (21°C)	30 minutes
Dry to touch / dry hard	2 hours / 4 hours
Full cure	7 days
Adhesion to steel (dry / wet)	500 psi / 250 psi
Adhesion to concrete (dry)	300 psi
Minimum substrate temperature	50°F and rising
Packaging / yield	100 lb kit (two 50 lb units), approx. 1.03 ft³

Product documents: Splash Zone Technical Data Sheet

Frequently Asked Questions

Can Five Star Splash Zone be applied underwater?
Yes. Five Star Splash Zone is an epoxy putty that can be applied underwater, and at or above the waterline, in fresh or salt-water splash zones.

Which jackets does Five Star Splash Zone top-seal?
Five Star Splash Zone is recommended for top-sealing Five Star PileForm F fiberglass pile jackets in splash-zone service.

What substrates does Five Star Splash Zone bond to?
Five Star Splash Zone bonds to concrete, steel, wood, aluminum, fiberglass, and Five Star PileForm F jackets.

Does Five Star Splash Zone contain nonylphenol?
No. Five Star Splash Zone does not contain nonylphenol, an EPA- and REACH-regulated marine toxin.

Does Five Star Splash Zone resist solvents and chemicals?
Yes. Five Star Splash Zone is resistant to solvents and chemicals in splash-zone service.

Can Five Star Splash Zone stay in a salt-water splash zone?
Yes. Five Star Splash Zone is used in fresh or salt-water splash zones at, above, or below the waterline.
