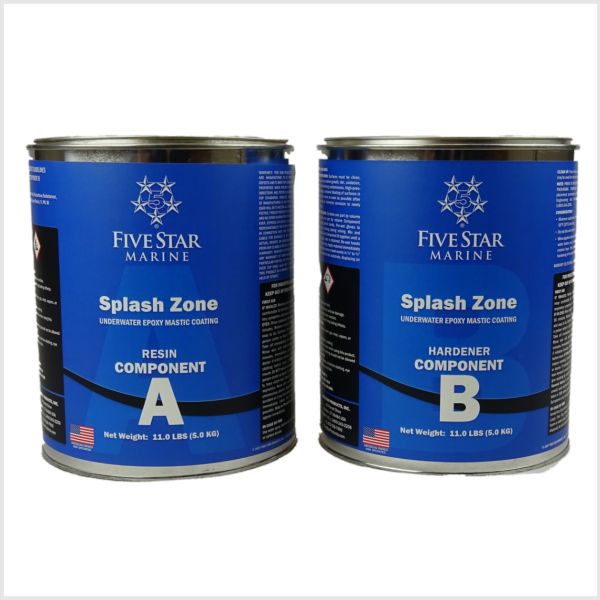

Five Star Splash Zone 1.78 Gallon
Five Star Splash Zone is a 100% solids, two-component epoxy putty compound recommended for top-sealing of Five Star PileForm F (FRP) jackets at, above, or below the waterline in fresh or salt water splash zones. It forms an excellent bond to concrete, steel, wood, aluminum, fiberglass and Five Star PileForm F (FRP) jackets.
- 1:1 Mix Ratio
- No VOCs
- Can Be Applied Underwater
$291.67
SKU
17908
Five Star Splash Zone – Underwater Epoxy Putty Compound
Five Star Splash Zone is a high-performance, two-component, 100% solids underwater epoxy putty compound designed for marine and structural repairs. It is ideal for the top-sealing of pile jacket repairs at, above, or below the waterline in both fresh and saltwater environments. Engineered for superior adhesion, it bonds exceptionally well to concrete, steel, wood, fiberglass, and aluminum. With excellent resistance to solvents and chemicals, this durable epoxy provides long-lasting protection in harsh marine conditions.
Key Features:
- 100% solids, two-component epoxy putty
- Can be applied underwater or in wet conditions
- Superior adhesion to concrete, steel, wood, fiberglass, and aluminum
- Resistant to solvents and harsh chemicals
- No VOCs – environmentally friendly
- Easy-to-use 1:1 mix ratio
- Provides corrosion protection for submerged structures
- High-strength bonding with minimal washout
Technical Specifications:
| Property | Value |
|---|---|
| Solids by Volume | 100% |
| Mixing Ratio (A:B) | 1:1 by volume |
| Color | Medium Gray |
| Working Time | 30 minutes |
| Dry to Touch | 2 hours |
| Dry Hard | 4 hours |
| Full Cure | 7 days |
| Shore D Hardness (ASTM D2240, 4 Hours) | 30-50 |
| Shore D Hardness (ASTM D2240, 1 Day) | 45-70 |
| Adhesion to Steel (ASTM D4541, Dry) | 500 psi (3.5 MPa) |
| Adhesion to Steel (ASTM D4541, Wet) | 250 psi (1.7 MPa) |
| Adhesion to Concrete (ASTM C1583, Dry) | 300 psi (2.1 MPa) |
| Adhesion to Concrete (ASTM C1583, Wet) | 200 psi (1.4 MPa) |
Frequently Asked Questions:
What are the typical applications for Five Star Splash Zone?
It is used for pile jacket repairs, underwater structural bonding, marine equipment repairs, and corrosion protection in splash zones.
Can this epoxy be applied underwater?
Yes, it is specially formulated for underwater application and maintains strong adhesion even in wet conditions.
How should the surface be prepared before application?
Surfaces should be cleaned and free of dirt, oxidation, rust, and marine growth. High-pressure water blasting or abrasive blasting is recommended.
For the latest technical specifications and application guidelines, visit Five Star Products.
| Brand | Five Star Products |
|---|---|
| Manufacturer | Five Star Products |
