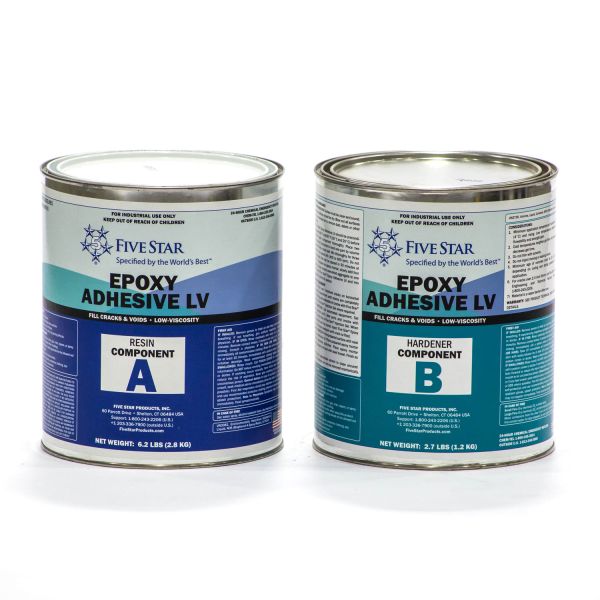

Five Star Products LV Adhesive 30811

Five Star Epoxy Adhesive LV is a two-component, 100% solids, moisture-insensitive structural epoxy adhesive used in filling cracks and voids up to 1/4 inch (6 mm).

Low viscosity for deep penetration
High modulus, moisture insensitive
Pressure inject or gravity feed

$222.67

Drop Shipped

Details

Five Star Epoxy Adhesive LV

Five Star Epoxy Adhesive LV is a two-component, 100% solids, moisture-insensitive structural epoxy for filling cracks and voids up to 1/4 inch. The low-viscosity mix can be pressure injected or gravity fed on concrete, masonry, wood, and steel, and it also works as a binder for an epoxy patching mortar with oven-dried sand. A 30 to 35 minute gel time at 70°F keeps crack injection, slab sealing, and void filling under equipment on schedule.

Key Features

Low viscosity for deep crack penetration
Moisture insensitive on damp, sound concrete
High-modulus structural adhesive for concrete, masonry, wood, and steel
Pressure inject or gravity feed cracks up to 1/4 inch
Can be blended with oven-dried sand as an epoxy patching mortar
USDA-accepted for food processing areas

Applications

Gravity feed of cracks and voids in horizontal concrete and masonry
Pressure injection of structural cracks up to 1/4 inch wide
Sealing tunnels, cable vaults, tanks, and basements
Void filler under equipment
Binder for interior horizontal epoxy mortar patches

Technical Specifications

Property	Value
Type	Two-component 100% solids epoxy adhesive
Viscosity	300 cps
Mix ratio	2:1 by volume (A:B)
Gel time at 70°F (21°C)	30-35 minutes
Compressive strength at 7 days	11,000 psi
Flexural strength	9,600 psi
Bond strength (2 day / 14 day)	2,400 psi / 3,600 psi
Shear strength	9,000 psi
Heat deflection temperature	122°F (50°C)
Packaging / yield	1 gal unit, approx. 231 in³

Product documents: Epoxy Adhesive LV Technical Data Sheet

Frequently Asked Questions

Can Five Star Epoxy Adhesive LV be pressure injected or gravity fed into cracks?
Yes. Five Star Epoxy Adhesive LV is a low-viscosity structural epoxy for filling cracks and voids up to 1/4 inch by pressure injection or gravity feed.

Does Five Star Epoxy Adhesive LV bond to damp concrete?
Yes. Five Star Epoxy Adhesive LV is moisture insensitive. Surfaces still have to be clean and sound. Dry surfaces give the best bond.

Can Five Star Epoxy Adhesive LV be used as a patching mortar?
Yes. When mixed with oven-dried aggregate, Five Star Epoxy Adhesive LV can be used as an epoxy patching mortar on interior horizontal surfaces.

What substrates does Five Star Epoxy Adhesive LV bond to?
Five Star Epoxy Adhesive LV bonds to masonry, concrete, wood, steel, and most structural materials.

Is Five Star Epoxy Adhesive LV accepted for food-processing areas?
Yes. Five Star Epoxy Adhesive LV meets USDA specification for use in food processing areas.

Should I inject Five Star Epoxy Adhesive LV into moving or leaking cracks?
No. Do not inject Five Star Epoxy Adhesive LV into moving or leaking cracks.
