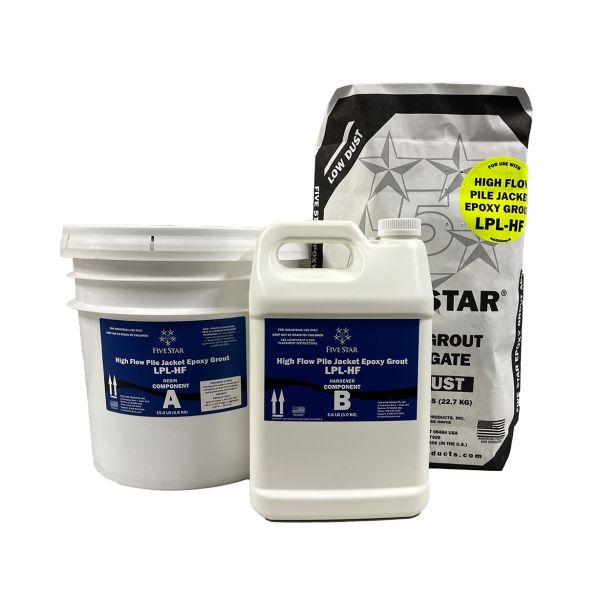

Five Star High Flow Pile Jacket Epoxy Grout LPL-HF 1.38 cu ft
Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is a three-component, 100% solids epoxy for underwater grouting and marine pile encapsulation with PileForm F jackets.
- High flow for pile jacket fill
- Non-segregating from 40°F to 100°F
- Bonds to concrete, steel, wood, and masonry
$490.00
Five Star High Flow Pile Jacket Epoxy Grout LPL-HF, Marine Encapsulation
Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is a three-component, 100% solids epoxy for underwater grouting and marine pile encapsulation with Five Star PileForm F fiberglass jackets. It places at low pump pressure, stays non-segregating from 40°F to 100°F, and restores structural capacity while adding corrosion protection on concrete, steel, and wood piles.
Key Features
- Pourable and pumpable at low pump pressure
- Non-segregating across 40°F to 100°F
- High compressive and bond strength for pile repair
- Long pot life for marine placements
- No nonylphenol in the formulation
- Works with PileForm F fiberglass jackets
Applications
- Marine pile repair and encapsulation
- Piers, docks, wharves, and bulkheads
- Jetties, breakwaters, and retaining walls
- Concrete, steel, and wood marine piles
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | Three-component, 100% solids epoxy grout |
| Yield | About 1.38 cu ft with 3 bags aggregate |
| Compressive strength, 1 day at 70°F | 3,500 psi |
| Compressive strength, 7 days at 70°F | 9,800 psi |
| Compressive strength, 28 days at 70°F | 11,500 psi |
| Working time at 70°F | 90 minutes |
| Working time at 40°F | > 240 minutes |
| Bond to concrete, 7 days | 2,200 psi |
| Bond to steel, 7 days | 2,000 psi |
| Installation temperature | 40°F to 100°F |
| Nonylphenol | 0.00% |
| Shelf life | 2 years, unopened, dry storage |
Product documents: High Flow Pile Jacket Epoxy Grout LPL-HF Technical Data Sheet (PDF)
Frequently Asked Questions
Is Five Star High Flow Pile Jacket Epoxy Grout LPL-HF used with Five Star PileForm F jackets?
Yes. Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is the underwater epoxy grout in the Five Star PileForm F fiberglass jacket engineered system.
Can Five Star High Flow Pile Jacket Epoxy Grout LPL-HF be pumped underwater?
Yes. Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is pourable and pumpable at low pump pressure for marine pile encapsulation.
What temperature range can Five Star High Flow Pile Jacket Epoxy Grout LPL-HF be installed in?
Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is non-segregating across installation temperatures from 40 F to 100 F.
Does Five Star High Flow Pile Jacket Epoxy Grout LPL-HF contain nonylphenol?
No. Five Star High Flow Pile Jacket Epoxy Grout LPL-HF does not contain highly toxic nonylphenol.
Does Five Star High Flow Pile Jacket Epoxy Grout LPL-HF segregate while pumping?
No. Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is non-air-entraining and non-segregating during pumping, with high bond strength to masonry, concrete, wood, and steel.
Where is Five Star High Flow Pile Jacket Epoxy Grout LPL-HF used besides piles?
Five Star High Flow Pile Jacket Epoxy Grout LPL-HF is used on piers, barrier and retaining walls, docks, wharves, bulkheads, jetties, and breakwaters.
