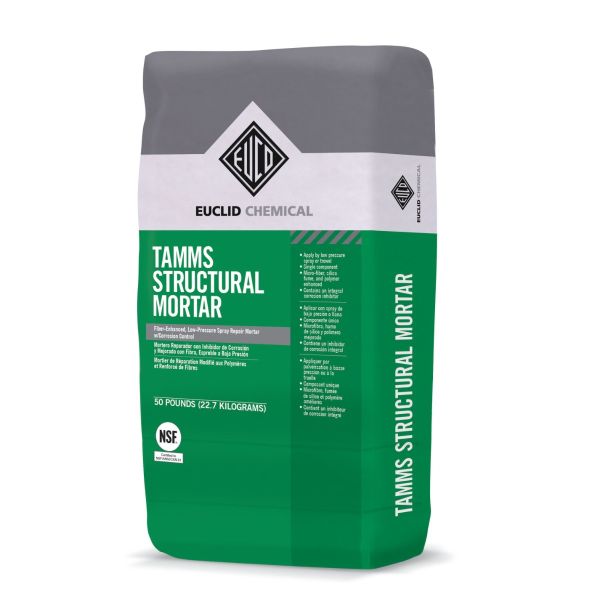

Euclid Tamms Structural Mortar 50lb Bag
Euclid Tamms Structural Mortar is a single-component repair mortar applied by low pressure spray or hand trowel for structural concrete repairs. It offers exceptional durability and performance. A proprietary formulation of portland cement, graded aggregates, unique fibers, and polymers used to increase adhesion, strength, and sprayability.
- Low pressure spray or trowel applied
- 30 minute working time
- 3/8” (0.95 cm) to 2.0” (5 cm) applications
$43.99
SKU
18757
Euclid Tamms Structural Mortar – Fiber-Reinforced Concrete Repair Mortar
Euclid Tamms Structural Mortar is a single-component, polymer-modified repair mortar formulated for structural concrete repairs. It can be applied by low-pressure spray or hand trowel, making it ideal for vertical and overhead applications. This fiber-reinforced mortar contains portland cement, graded aggregates, and a unique polymer formulation that enhances adhesion, strength, and workability. Tamms Structural Mortar is freeze-thaw resistant and contains an integral corrosion inhibitor to improve durability in demanding environments. It is NSF/ANSI Standard 61 certified for potable water applications.
Key Features:
- Fiber-reinforced and polymer-modified for superior strength
- Low-pressure spray or hand trowel application
- Freeze-thaw resistant for long-term durability
- Contains an integral corrosion inhibitor
- 30-minute working time for ease of placement
- Vertical and overhead application thickness: 3/8” to 2” per lift
- NSF/ANSI Standard 61 certified for potable water applications
- Compatible with galvanic anodes for additional protection
Technical Specifications:
| Property | Value |
|---|---|
| Set Time (Initial) | 1 hour |
| Set Time (Final) | 2 hours |
| Compressive Strength (1 day) | 3,200 psi (22.0 MPa) |
| Compressive Strength (7 days) | 6,200 psi (42.7 MPa) |
| Compressive Strength (28 days) | 8,500 psi (58.6 MPa) |
| Flexural Strength (1 day) | 1,500 psi (10.3 MPa) |
| Flexural Strength (28 days) | 1,650 psi (11.4 MPa) |
| Shear Bond Strength (28 days) | 3,250 psi (22.4 MPa) |
| Splitting Tensile Strength (7 days) | 480 psi (3.3 MPa) |
| Splitting Tensile Strength (28 days) | 660 psi (4.5 MPa) |
| Freeze/Thaw Resistance (300 cycles) | 96% relative dynamic modulus |
| Chloride Permeability | 1,050 coulombs |
| Volumetric Resistivity | 11,300 ohm-cm |
| Coverage | 0.45 ft³ per 50 lb unit |
Frequently Asked Questions:
What is Euclid Tamms Structural Mortar used for?
It is designed for vertical and overhead concrete repairs in structures such as bridges, parking garages, tunnels, and wastewater treatment facilities.
Can it be applied in cold weather?
Yes, but the minimum ambient and surface temperature should be 40°F (4°C) and rising at the time of application.
How thick can it be applied?
Tamms Structural Mortar can be applied from 3/8 inch to 2 inches per lift.
| Brand | Euclid Chemical |
|---|---|
| Manufacturer | Euclid Chemical |
