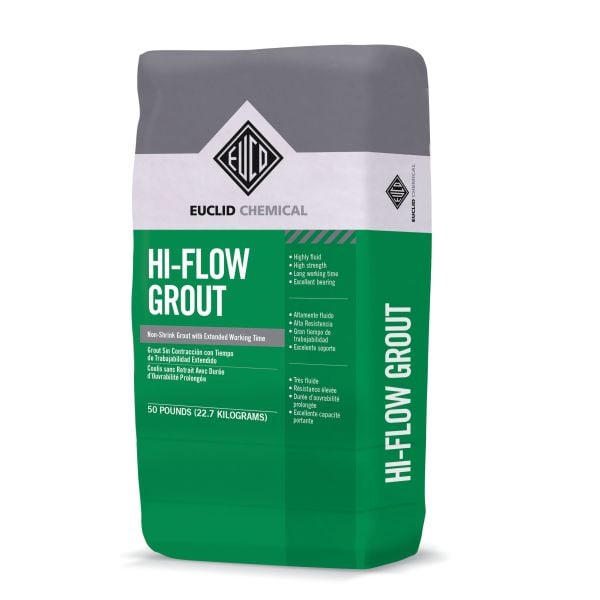

Euclid Hi-Flow Grout 50lb Bag
Euclid Hi-Flow Grout is a high-tolerance, non-shrink natural-aggregate grout for machinery, columns, crane rails, and anchorages. It stays highly fluid without bleeding so it fills under plates.
- Highly fluid, non-bleed placement under plates
- NSF/ANSI/CAN 61 listed, chloride-free
- Rapid early strength for equipment re-grouts
$24.53
Euclid Hi-Flow Grout, 50 lb Bag
Euclid Hi-Flow Grout is a high-tolerance, non-shrink cementitious grout made with natural aggregate and a shrinkage-compensating binder. It is used on crane rails, bridge seats, bearing plates, and machinery where the mix has to be highly fluid without bleeding, then harden to high compressive strength. Euclid lists it chloride-free, with NSF/ANSI/CAN Standard 61 listing for potable water.
Key Features
- Non-shrink cementitious grout with natural aggregate
- Shrinkage-compensating binder
- Highly fluid without bleeding, then hardens
- NSF/ANSI/CAN Standard 61 listed
- Chloride-free
- Rapid strength gain for equipment re-grouts
Applications
- Heavy-duty grouting of machinery and equipment.
- Structural columns, crane rails, and bridge seats.
- Bearing plates and anchorages.
Technical Specifications
| Property | Value |
|---|---|
| 28-day compressive, flowable | 9,500 psi |
| 28-day compressive, fluid | 8,500 psi |
| 1-day compressive, flowable | 3,500 psi |
| Volume change | +0.02% flowable, +0.03% fluid |
| Initial set | 3 hr 50 min |
| Final set | 4 hr 50 min |
| Placement temperature | 40 to 100 F |
| NSF/ANSI/CAN 61 | Listed |
| Compliance | ASTM C1107, CRD-C 621 |
| Yield | 0.45 ft³ per 50 lb |
| Documents | Hi-Flow Grout TDS |
Frequently Asked Questions
When should I use Euclid Hi-Flow Grout?
Euclid Hi-Flow Grout is for heavy duty grouting of machinery and equipment, structural columns, crane rails, bridge seats, bearing plates, and anchorages. Euclid designed it where high tolerance, high strength, and high fluidity are required.
What potable-water listing does Euclid Hi-Flow Grout have?
Euclid lists Hi-Flow Grout to NSF/ANSI/CAN Standard 61. That listing is on the Hi-Flow Grout technical data sheet.
What 28-day compressive strength does Euclid Hi-Flow Grout reach?
Under laboratory conditions, Euclid publishes 9,500 psi at flowable consistency and 8,500 psi at fluid consistency (ASTM C109M, 2 in cubes). Expect reasonable variation under field conditions.
What temperature range is Euclid Hi-Flow Grout designed for fluid placement?
Euclid publishes Hi-Flow Grout as designed to be fluid poured at 40 to 100 F.
What does Euclid Hi-Flow Grout publish about chlorides?
Euclid publishes that Hi-Flow Grout does not contain any chlorides or additives which may contribute to corrosion of the base structure.
What specifications does Euclid Hi-Flow Grout meet?
Euclid publishes Hi-Flow Grout to CRD-C 621 and ASTM C1107. The sheet also lists Canadian MTQ, and NSF/ANSI/CAN Standard 61.
