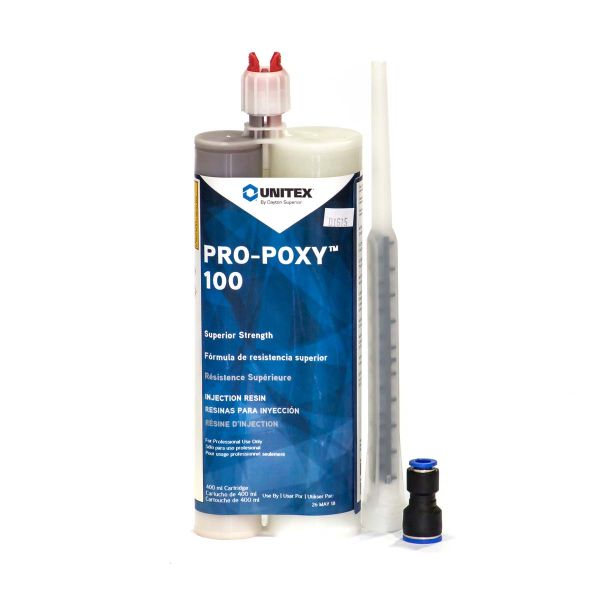

Dayton Superior Pro-Poxy 100 Cartridge 140070
Dayton Superior Pro-Poxy 100 Cartridge is a 100% solids, high-modulus, low-viscosity epoxy in a 13.5 oz (400 ml) cartridge for gravity or pressure injection of concrete cracks. The 2:1 mix is moisture tolerant and penetrates 1/8 in to 1/4 in cracks so the repair reaches high bond strength in the member.
- 13.5 oz cartridge is used on 1/8 in to 1/4 in cracks
- Moisture-tolerant mix is used on damp or dry cracks with no standing water
- Injection ports are spaced from 8 in to 36 in apart depending on crack width
$33.50
Availability:
Out of stock
Dayton Superior Pro-Poxy 100 Cartridge
Dayton Superior Pro-Poxy 100 Cartridge is a 100% solids, high-modulus, low-viscosity epoxy in a 13.5 oz (400 ml) cartridge for gravity or pressure injection of concrete cracks. The 2:1 mix is moisture tolerant and penetrates 1/8 in to 1/4 in cracks so the repair reaches high bond strength in the member. Product code is 140070. The cartridge is shaken for 60 seconds, then stood for 1 minute before the first stroke.
Key Features
- Low-viscosity epoxy cartridge is used for gravity or pressure injection
- 13.5 oz (400 ml) cartridge is used on 1/8 in to 1/4 in cracks
- Moisture-tolerant mix is used on damp or dry cracks with no standing water
- Injection ports are spaced from 8 in to 36 in apart depending on crack width
- The cartridge is shaken for 60 seconds, then stood for 1 minute before the first stroke
Applications
- Fine to medium concrete cracks that need a 13.5 oz injection cartridge
- Masonry cracks from 1/8 in to 1/4 in that need pressure injection
- Members that need ports spaced 8 in to 36 in apart along the crack
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | 100% solids high-modulus low-viscosity epoxy |
| Pack | 13.5 oz (400 ml) cartridge |
| Product code | 140070 |
| Mix ratio | 2:1 by volume |
| Viscosity | About 610 cP |
| Gel time 60 g | About 30 minutes |
| Crack width | About 1/8 in to 1/4 in |
| Port spacing | 8 in to 36 in |
| ASTM C881 | Type I, II, IV, V Grade 1 Class C |
| VOC | 0 g/L |
| Drinking water | UL certified to NSF/ANSI/CAN 61 |
Product documents: Dayton Superior Pro-Poxy 100 Data Sheet (PDF)
Frequently Asked Questions
What cracks is Dayton Superior Pro-Poxy 100 Cartridge used on?
Fine to medium cracks about 1/8 in to 1/4 in in concrete and masonry. Gravity feed or pressure injection.
What cartridge size is Dayton Superior Pro-Poxy 100 Cartridge?
This listing is a 13.5 oz (400 ml) cartridge, code 140070. Mix ratio is 2:1.
What shake does Dayton Superior Pro-Poxy 100 Cartridge need?
The cartridge is shaken for 60 seconds, then stood for 1 minute so bubbles rise before the first stroke.
What port spacing does Dayton Superior Pro-Poxy 100 Cartridge use?
About 8 in to 36 in apart depending on crack width and member thickness.
What moisture does Dayton Superior Pro-Poxy 100 Cartridge tolerate?
Damp or dry cracks. Standing water is removed before the fill.
What gel time does Dayton Superior Pro-Poxy 100 Cartridge have?
About 30 minutes on a 60 gram mass. Consume a cartridge in one continuous flow.
