Air Sentry D-101 Desiccant Breather Case 6

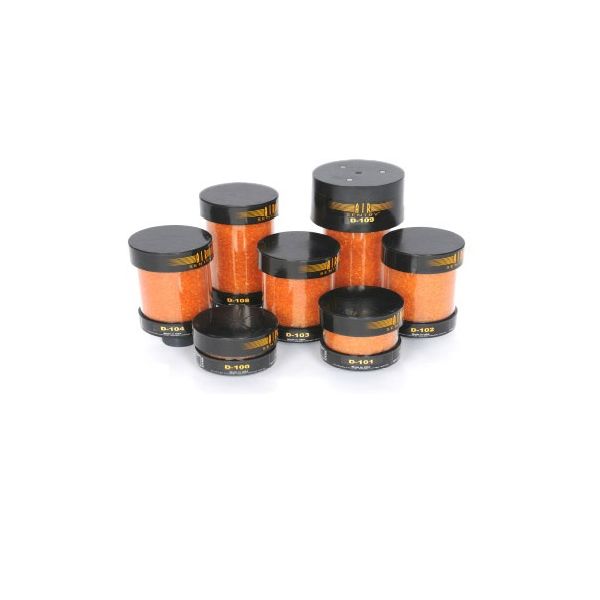

D-Series Breathers feature numerous models in a variety of sizes, all designed to satisfy the requirements of most stationary fluid management applications. The breathers provide application flexibility by using 100% silica gel for moisture adsorption, 100% activated carbon for fume and odor control or both, when necessary.
- High impact resistant caps
- Industrial grade silica gel and activated carbon
- Easy to see color changing lifespan status
$679.71
Drop Shipped
SKU
14275
Air Sentry D-101 Desiccant Breather 095D101 Case of 6
Air Sentry D-101 is a D-Series desiccant breather for stationary fluid management applications. It helps limit moisture and particulate contamination by combining a desiccant media with fine particle filtration, supporting longer fluid life and more stable equipment operation on reservoirs and storage tanks where breathing occurs during level and temperature changes.
Key Features
- Desiccant breather for stationary applications.
- 100% silica gel media for moisture adsorption.
- 2-micron solid particle filtration on the inlet and outlet.
- Clear acrylic tube for quick visual inspection of the desiccant condition.
- Color-changing silica gel indicates moisture adsorption by changing from gold to dark green.
- Maximum airflow rating of 20 cfm.
Applications
- Oil storage tanks and stationary fluid reservoirs.
- Hydraulic reservoirs and lubricant reservoirs.
- Gearboxes, pumps, and similar closed systems that breathe to atmosphere.
- Maintenance and lube room equipment where moisture control supports reliability.
Technical Specifications:
| Property | Value |
|---|---|
| Model | D-101 (095D101) |
| Height | 5 in (12.7 cm) |
| Diameter | 5 in (12.7 cm) |
| Mounting Connection | 1 inch slip fit |
| Type of Medium | 100% silica gel |
| Silica Gel | 1.4 lbs (0.6 kg) |
| Maximum Adsorption Capacity | 8.6 fl oz (254 mL) |
| Maximum Air Flow | 20 cfm |
| Maximum Reservoir Fluid Flow | 150 gpm |
| Particle Filtration | 2-micron solid particle filtration (inlet and outlet) |
| Operating Temperature | -20°F (-29°C) to +200°F (+93°C) |
Frequently Asked Questions
What is the D-101 used for?
It is a stationary desiccant breather used on reservoirs and storage tanks to help limit moisture entry and reduce particulate contamination as the system breathes.
How do I know when the desiccant is spent?
The silica gel changes color from gold to dark green as it adsorbs moisture, providing a visual indicator for replacement planning.
What is the airflow rating?
The D-101 is rated for a maximum airflow of 20 cfm.
What mounting connection does it use?
The D-101 uses a 1 inch slip fit connection.
What filtration level does the D-Series use?
D-Series breathers use 2-micron solid particle filtration on both the inlet and outlet.
