Air Sentry D-102 Desiccant Breather Case 6

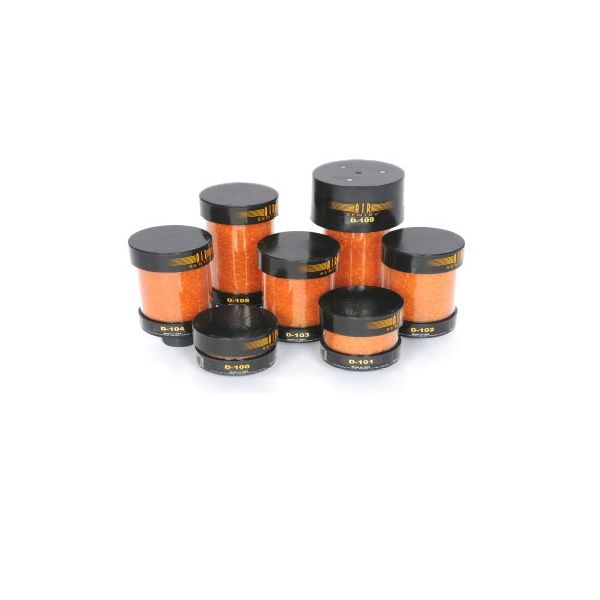

D-Series Breathers feature numerous models in a variety of sizes, all designed to satisfy the requirements of most stationary fluid management applications. The breathers provide application flexibility by using 100% silica gel for moisture adsorption, 100% activated carbon for fume and odor control or both, when necessary.
- High impact resistant caps
- Industrial grade silica gel and activated carbon
- Easy to see color changing lifespan status
$742.98
Drop Shipped
Free Shipping for orders over $300
Air Sentry D-102 Desiccant Breather 095D102 Case 6
Air Sentry D-102 is a D-Series desiccant breather built for stationary fluid management applications where reservoirs and tanks breathe during level and temperature changes. It uses 100% silica gel for moisture adsorption and includes fine particle filtration to help reduce moisture and dirt entry that can shorten oil life and increase wear. The clear tube supports quick visual inspection, and the color-changing silica gel indicates when the breather is reaching its adsorption capacity.
Key Features
- D-Series stationary desiccant breather for contamination control.
- 100% silica gel media for moisture adsorption.
- Color-changing silica gel provides a clear replacement indicator.
- Clear tube supports quick visual inspection from a distance.
- 2-micron solid particle filtration on both inlet and outlet.
- Maximum airflow rating of 20 cfm.
Applications
- Oil storage tanks and stationary fluid reservoirs.
- Hydraulic reservoirs and lubricant reservoirs.
- Gearboxes, pumps, and similar systems that breathe to atmosphere.
- Transformer and stationary equipment applications where moisture control is critical.
Technical Specifications:
| Property | Value |
|---|---|
| Model | D-102 (095D102) |
| Height | 8 in (20.3 cm) |
| Diameter | 5 in (12.7 cm) |
| Mounting Connection | 1 inch slip fit |
| Type of Medium | 100% silica gel |
| Silica Gel | 2.7 lbs (1.2 kg) |
| Maximum Adsorption Capacity | 16.56 fl oz (489 mL) |
| Maximum Air Flow | 20 cfm |
| Maximum Reservoir Fluid Flow | 150 gpm |
| Particle Filtration | 2-micron solid particle filtration (inlet and outlet) |
| Operating Temperature | -20°F (-29°C) to +200°F (+93°C) |
Frequently Asked Questions
What is the D-102 used for?
It is a stationary desiccant breather used on reservoirs and storage tanks to help reduce moisture and particulate contamination as the system breathes.
How do I know when it needs to be replaced?
The silica gel changes color as it adsorbs moisture, providing a visible indicator that the breather is approaching its adsorption capacity.
What mounting connection does the D-102 use?
The D-102 uses a 1 inch slip fit connection.
What is the airflow rating?
The maximum airflow rating listed for the D-102 is 20 cfm.
What filtration level does the D-Series use?
D-Series breathers include 2-micron solid particle filtration on both the inlet and outlet.
