WR Meadows KOOL-ROD SOFT 3/8 Inch Backer Rod - 2100 LF Carton

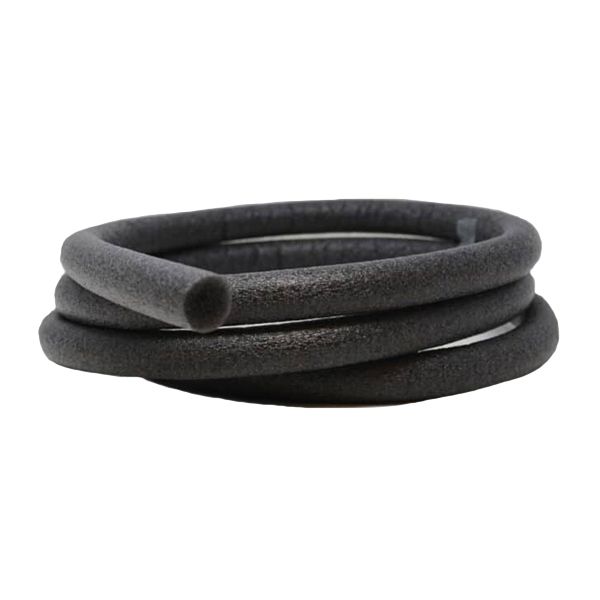

WR Meadows KOOL-ROD SOFT is a soft, compressible polyethylene foam backer rod, offered here as a 3/8 inch diameter carton of 2100 LF, part 4620375. It backs cold-applied joint sealants, sets sealant depth, and will not stain or adhere to the sealant.
- 3/8 inch (10 mm) diameter, 2100 LF per carton, 2 spools per carton
- Non-gassing and non-bubbling soft formulation
- Meets ASTM C1330 Type B and ASTM D5249 Type 3
$109.47
Drop Shipped
WR Meadows KOOL-ROD SOFT 3/8 Inch Backer Rod - 2100 LF Carton
WR Meadows KOOL-ROD SOFT is a flexible, rope-like polyethylene foam joint backing intended for use with cold-applied joint sealants. It is virtually non-absorbent, chemically inert to most solvents, and will not stain or adhere to the sealant, so it prevents three-sided adhesion. The SOFT formulation compresses more readily, so one diameter can fit a greater variety of joint sizes, and it is non-gassing and non-bubbling. The recommended joint width for this 3/8 inch rod is 3/16 to 1/4 inch (4.8 to 6.4 mm).
Key Features
- Controls sealant depth to keep the proper joint design ratio
- Pushes sealant against the joint sidewalls for maximum sidewall adhesion
- Sealants will not adhere to it, which prevents three-sided adhesion failure
- Closed-cell foam that does not allow air or moisture entrapment
- High compressibility and light weight; installs fast and stays in place
Applications
- Construction, expansion, isolation, control, and pavement joints in concrete
- Vertical and horizontal joints
- Glazing, copings, and joints between precast panels
- Door and window perimeters on the building envelope
Technical Specifications
| Property | Value |
|---|---|
| Material | Flexible, closed-cell polyethylene foam |
| Color | Gray |
| Diameter | 3/8 inch (10 mm) |
| Length per carton | 2100 LF (640 m) |
| Carton contents | 2 spools per carton |
| Recommended joint width | 3/16 to 1/4 inch (4.8 to 6.4 mm) |
| Compatible sealants | Acrylic, butyl, polyurethane, polysulfide, silicone, and most other cold-applied sealants |
| Standards | ASTM C1330 Type B; ASTM D5249 Type 3 |
| Density | 1.6 to 2.0 lb/ft³ (ASTM D1622) |
| Outgassing | 0 bubbles (ASTM C1253) |
| Compression recovery | More than 97% (ASTM D5249) |
| Compression deflection | 0.9 psi (ASTM D5249) |
| Water absorption | Less than 0.03 g/cc (ASTM C1016, Procedure B) |
| Tensile strength | More than 25 to 50 psi (ASTM D1623) |
| Pack | Carton, 2100 LF |
| Part number | 4620375 |
Product documents: WR Meadows KOOL-ROD SOFT Data Sheet (PDF)
Frequently Asked Questions
What sealants can KOOL-ROD SOFT be used with?
It is compatible with acrylic, butyl, polyurethane, polysulfide, silicone, and most other cold-applied sealant compounds. It will not stain or adhere to the sealant.
What joint size does the 3/8 inch KOOL-ROD SOFT fit?
The recommended joint width for this 3/8 inch rod is 3/16 to 1/4 inch (4.8 to 6.4 mm). The soft formulation compresses readily, so one diameter covers a range of joint widths.
How deep should KOOL-ROD SOFT be set?
Install it at the depth recommended by the sealant manufacturer, specifier, or architect. Generally, the joint depth left after the rod is installed should be half the joint width, although very large and very small joints vary from this ratio.
How is KOOL-ROD SOFT installed?
Confirm the joint is clean, dry, and free of obstructions. Select the proper diameter, cut it to length or use it directly, and press it in uniformly with a blunt instrument or roller. Do not tear, puncture, twist, or overly compress the rod, and avoid voids that could trap air or moisture between the rod and the sealant.
