Trico E Opto-Matic Oiler 4oz 30054
Trico Opto-Matic Type E 30054. 4 oz plastic-reservoir constant-level oiler for sumps that cannot use glass.
- 4 oz Type E plastic, 1/4 NPT
- 165 F continuous; not Type LS
- 2 oz Type E is another size
$76.61
Availability:
Out of stock

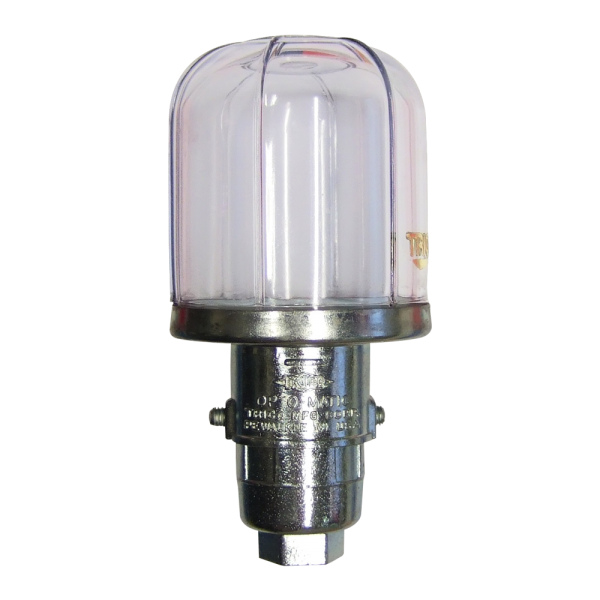

Trico Opto-Matic Type E 30054, 4 oz Plastic
Trico Opto-Matic Type E 30054 is a 4 oz plastic-reservoir constant-level oiler. Use it on bearing housings and gearboxes where glass is not wanted. Zinc die-cast body, 1/4 NPT, 165 F continuous. Type E is the compact plastic style without the LS surge chamber. The 2 oz Type E is another size of this oiler. Type LS and glass oilers are listed separately.
Looking for another size?
Key Features
- Type E plastic reservoir, 4 oz
- For plants that cannot use glass
- 1/4 NPT; 165 F continuous
- Zinc die-cast body
- 2 oz Type E is another size
- Not Type LS or glass Opto-Matic
Applications
- Bearing housings where glass is restricted
- 4 oz plastic sumps
- Gearboxes needing a plastic oiler
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Trico |
| Model | 30054 |
| Style | Opto-Matic Type E |
| Capacity | 4 oz |
| Connection | 1/4 NPT |
| Max temp | 165 F continuous |
| Reservoir | butyrate plastic |
| Casting | zinc die cast |
| Surge chamber | not LS |
| Other size | 2 oz 30052 |
| Not | Type LS or glass |
Frequently Asked Questions
What is this?
Trico Opto-Matic Type E 30054, a 4 oz plastic constant-level oiler.
Type LS?
No. LS has a larger surge chamber and is listed separately.
Other size?
2 oz Type E 30052.
Temp?
165 F continuous.
Who makes it?
Trico.
