Simpson Strong-Tie Zinc Nailon Pin Driver Anchor 1/4 X 1/12 ZN25112 Case 100
Zinc Nailon 1/4 x 1-1/2 pin-drive, model ZN25112. Zamac 3 body, carbon-steel pin. Box of 100. Static loads. Not overhead.
- 1/4 x 1-1/2, model ZN25112, box of 100
- Drill 1/4 in; drive the pin flush
- Not for overhead; 1-1/4 in listed as the other size
$17.71
Availability:
In stock
Drop Shipped Zinc Nailon Pin-Drive Anchor 1/4 x 1-1/2, ZN25112

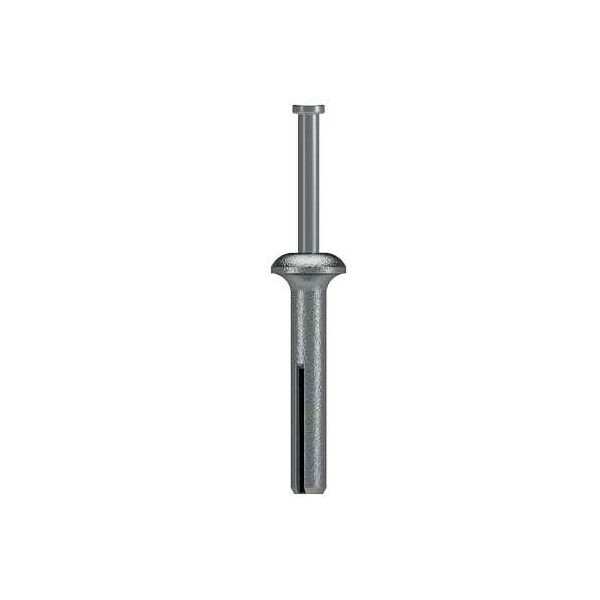

Zinc Nailon is a mushroom-head pin-drive anchor for static loads in concrete, brick, and block. This 1/4 x 1-1/2, model ZN25112, ships a 100-count box. The body is die-cast Zamac 3 with a carbon-steel pin. Drill a 1/4 in hole, tap the head flush with the fixture, then drive the pin flush. Do not use it overhead. The same 1/4 in Nailon is also the 1-1/4 in length. Titen HD screws are listed separately.
Looking for another size?
Key Features
- Mushroom-head pin-drive for static loads
- 1/4 x 1-1/2, model ZN25112, box of 100
- Zamac 3 body with a carbon-steel pin
- Drill 1/4 in; tap flush, then drive the pin flush
- Not for overhead work; 1-1/4 in listed separately
Applications
- Light fixtures and conduit clips on concrete or block
- Static-load attachments in brick
- Jobs that want a tamper-resistant pin head
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Zinc Nailon |
| Model | ZN25112 |
| Size | 1/4 x 1-1/2 |
| Head | Mushroom, pin-drive |
| Body | Die-cast Zamac 3 |
| Pin | Carbon steel |
| Box qty | 100 |
| Drill bit | 1/4 in |
| Use | Static loads, not overhead |
| Other length | 1-1/4 in ZN25114, live |
Frequently Asked Questions
What is this?
A 1/4 x 1-1/2 Zinc Nailon pin-drive, model ZN25112, box of 100. Zamac 3 body, carbon-steel pin.
How do I install it?
Drill a 1/4 in hole a little deeper than embed, set the fixture, tap the head flush, then drive the pin flush.
Overhead?
No. Nailon is not for overhead work.
Other size?
The 1-1/4 in 1/4 in Nailon is listed separately. Other diameters are not live here.
Who makes it?
Simpson Strong-Tie.
