Simpson Strong-Tie CSD/DSD Split-Drive Anchors 1/4 X 3 CSD25300 Case 100
CSD split-drive 1/4 x 3 countersunk anchor, model CSD25300. Zinc plated for dry interiors. Box of 100. Drive until the head is flush.
- 1/4 x 3 countersunk, model CSD25300, box of 100
- Drill 1/4 in; fixture hole 3/8 in on steel
- Not the duplex DSD head; drop-ins listed separately
$31.14
Availability:
In stock
Drop Shipped CSD Split-Drive Anchor 1/4 x 3, CSD25300

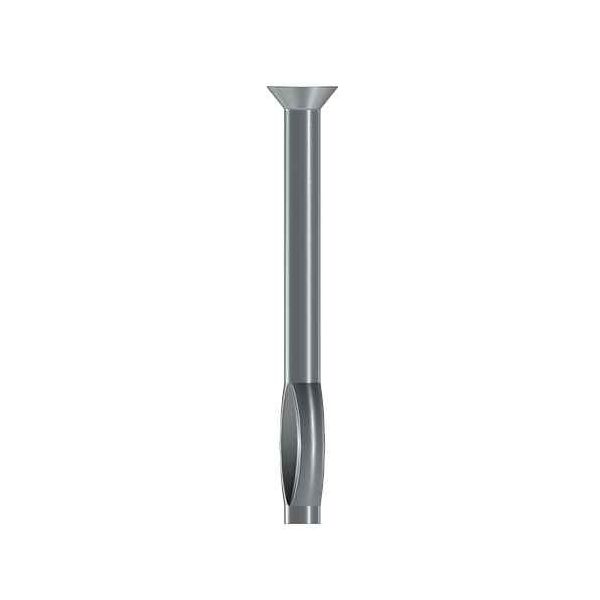

The CSD split-drive is a one-piece countersunk expansion anchor for concrete, grout-filled block, and stone. This 1/4 x 3, model CSD25300, ships a 100-count box and is zinc plated for dry interior work. Drill a 1/4 in hole, use a 3/8 in fixture hole on steel, and drive until the head is flush. It is not the duplex DSD head. Drop-in anchors are listed separately.
Key Features
- One-piece split-drive for concrete, grout-filled block, and stone
- 1/4 x 3 countersunk, model CSD25300, box of 100
- Drill 1/4 in; 3/8 in fixture hole on steel; drive until the head is flush
- Zinc plated for dry interiors
- Not the duplex DSD head; drop-in anchors are listed separately
Applications
- Wood or light-gauge steel to concrete
- Grout-filled block
- Interior dry work
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | CSD Split-Drive |
| Model | CSD25300 |
| Size | 1/4 x 3 |
| Head | Countersunk |
| Coating | Zinc plated, dry interior |
| Box qty | 100 |
| Drill bit | 1/4 in |
| Fixture hole | 3/8 in on steel |
| Embedment | 1 1/4 in |
| Not | DSD duplex or drop-in |
Frequently Asked Questions
CSD or DSD?
This is CSD countersunk, model CSD25300. DSD is the duplex head you can pull with a claw hammer, and it is not listed here.
How do I install it?
Drill 1/4 in, blow it clean, drop it through the fixture, and drive until the head is flush. On steel, use a 3/8 in fixture hole.
Can I use it outdoors?
This zinc plated CSD is for dry interiors. Mechanically galvanized CSD is a different SKU and is not listed here.
Is this a drop-in?
No. Drop-in anchors are internally threaded and are listed separately.
Who makes it?
Simpson Strong-Tie.
