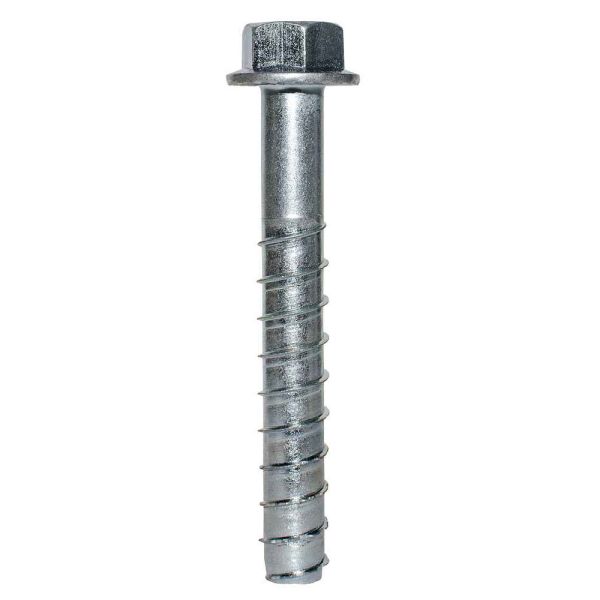

Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor 3/4 X 6 THDT75600H Case 5
Titen HD 3/4 x 6 hex-washer screw anchor, model THDT75600H. Carbon steel, zinc plated for dry interiors. Box of 5.
- 3/4 x 6, model THDT75600H, box of 5
- Drill 3/4 in; overdrill about 1/2 in
- Same 3/4 in material as the 5 in length
$36.72
Availability:
In stock
Drop Shipped Titen HD 3/4 x 6 Screw Anchor, THDT75600H
Titen HD is a high-strength carbon steel screw anchor for cracked and uncracked concrete and uncracked masonry. This 3/4 x 6 hex-washer head, model THDT75600H, ships a 5-count box and is zinc plated for dry interior work. Drill a 3/4 in hole, overdrill about 1/2 in for tap dust, and drive until the washer seats. The same 3/4 in material is also the 5 in length.
Looking for another size?
Key Features
- High-strength screw for cracked and uncracked concrete
- Uncracked masonry too
- 3/4 x 6 hex-washer head, model THDT75600H, box of 5
- Drill 3/4 in; overdrill about 1/2 in; 1 1/8 in wrench
- Drive until the washer seats; zinc plated for dry interiors
- Same 3/4 in material as the 5 in length
Applications
- Sill plates, ledgers, and post bases
- Seating and holdowns
- Temporary formwork and bracing you may pull later
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Titen HD |
| Model | THDT75600H |
| Size | 3/4 x 6 |
| Head | Hex washer |
| Coating | Zinc plated, dry interior |
| Box qty | 5 |
| Drill bit | 3/4 in |
| Wrench | 1 1/8 in |
| Overdrill | 1/2 in |
| Thread length | 4 1/2 in |
| Nominal embed | 4, 5 1/2, or 6 1/4 in |
Frequently Asked Questions
What is this?
A 3/4 x 6 Titen HD hex-washer screw anchor, model THDT75600H, in a 5-count box. Zinc plated for dry interior work.
Why the extra T in the model?
THDT75600H is the current C-A-2023 model for the 3/4 x 6 hex-washer zinc Titen HD.
How do I install it?
Drill a 3/4 in ANSI hole, overdrill about 1/2 in, blow it clean (overhead can stay dusty), then drive until the washer seats.
What other 3/4 in length is live?
The 5 in 3/4 in Titen HD, model THD75500H. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
