Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor 3/4 X 5 THD75500H Case 5

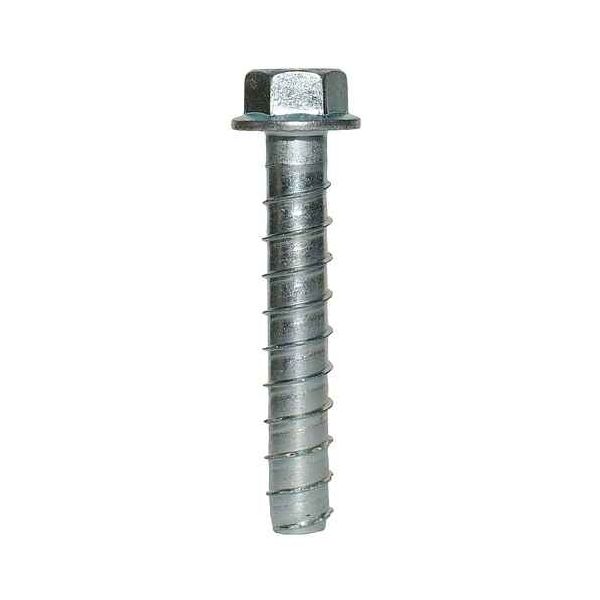

Titen HD 3/4 x 5 hex-washer screw anchor, model THD75500H. Carbon steel, zinc plated for dry interiors. Box of 5.
- 3/4 x 5, model THD75500H, box of 5
- Drill 3/4 in; overdrill about 1/2 in
- Same 3/4 in material as the 6 in length
$35.08
Availability:
In stock
Drop Shipped Titen HD 3/4 x 5 Screw Anchor, THD75500H
Titen HD is a high-strength carbon steel screw anchor for cracked and uncracked concrete and uncracked masonry. This 3/4 x 5 hex-washer head, model THD75500H, ships a 5-count box and is zinc plated for dry interior work. Drill a 3/4 in hole, overdrill about 1/2 in for tap dust, and drive until the washer seats. The same 3/4 in material is also the 6 in length.
Looking for another size?
Key Features
- High-strength screw for cracked and uncracked concrete
- Uncracked masonry too
- 3/4 x 5 hex-washer head, model THD75500H, box of 5
- Drill 3/4 in; overdrill about 1/2 in; 1 1/8 in wrench
- Drive until the washer seats; zinc plated for dry interiors
- Same 3/4 in material as the 6 in length
Applications
- Sill plates, ledgers, and post bases
- Seating and holdowns
- Temporary formwork and bracing you may pull later
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Titen HD |
| Model | THD75500H |
| Size | 3/4 x 5 |
| Head | Hex washer |
| Coating | Zinc plated, dry interior |
| Box qty | 5 |
| Drill bit | 3/4 in |
| Wrench | 1 1/8 in |
| Overdrill | 1/2 in |
| Thread length | 4 1/2 in |
| Nominal embed | 4, 5 1/2, or 6 1/4 in |
Frequently Asked Questions
What is this?
A 3/4 x 5 Titen HD hex-washer screw anchor, model THD75500H, in a 5-count box. Zinc plated for dry interior work.
How do I install it?
Drill a 3/4 in ANSI hole, overdrill about 1/2 in, blow it clean (overhead can stay dusty), then drive until the washer seats.
Can I use it outdoors?
This zinc plated carbon steel is for dry interiors. Mechanically galvanized and stainless Titen HD are different SKUs and are not listed here.
What other 3/4 in length is live?
The 6 in 3/4 in Titen HD, model THDT75600H. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
