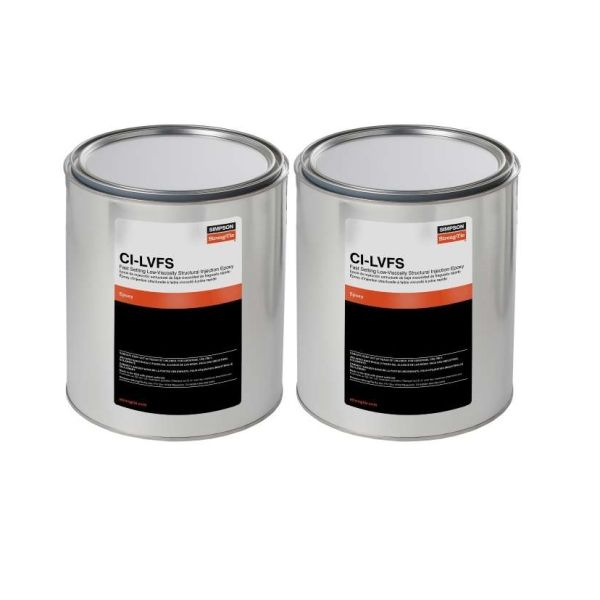

Simpson Strong-Tie CI-LV FS Fast-Setting Low-Viscosity Structural Injection Epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection of concrete cracks and for increasing the bond between freshly placed repair mortars or concrete mixes and existing concrete when substrate temperatures are between 40°F (4°C)–90°F (32°C).
Applications Pressure-injection of cracks in structural concrete Gravity-feed of cracks in horizontal concrete As a low-viscosity epoxy (600 cP) for repair of fine- to medium-width cracks 1/64"–1/4" (0.4–6 mm) in width For structural repairs To bond new concrete or repair mortars to existing concrete
Meets the requirements of ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 1, Class C. Chemically bonds with the concrete to provide a structural repair. CI-LV FS seals the crack from moisture, protecting rebar in the concrete from corrosion. Moisture-tolerant; can be used on dry and damp surfaces. Low surface tension allows the material to effectively penetrate narrow cracks. Formulated for maximum penetration under pressure. Suitable for pressure injection or gravity-feed applications. Non-shrink and resistant to oils, salts and mild chemicals. Can be used with metered pressure-injection equipment. Freeze-thaw resistant.
