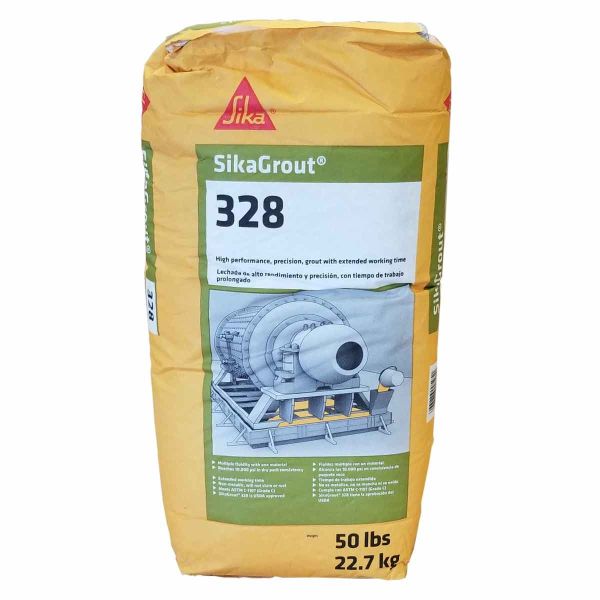

Sika SikaGrout 328 50lb Bag
SikaGrout-328 is a non-shrink cementitious precision grout in a 50 lb bag. It is placed under machinery and base plates that need maximum effective bearing area, with extended working time at fluid consistency.
- Extended working time at fluid consistency
- Maximum effective bearing area for load transfer
- Non-metallic, will not stain or rust
$55.46
Availability:
In stock
( 257 Available )
SikaGrout 328
SikaGrout-328 is a non-shrink non-metallic cementitious precision grout powered by ViscoCrete. This 50 lb bag (part 107608) is for machinery, base plates, and sole plates that need maximum effective bearing area. Extended working time at fluid consistency gives enough time to place a pumpable lift. It is placed from dry pack to fluid, indoors or out.
Key Features
- Non-shrink non-metallic cementitious precision grout
- 50 lb bag, part 107608
- Powered by ViscoCrete
- Extended working time at fluid consistency
- Maximum effective bearing area
- Meets ASTM C1107 Grade B and C
Applications
- Machinery and equipment grouting
- Base plates, sole plates, precast panels, beams, and columns
- Pumpable placements that need extended working time
- Rebar, bolts, dowels, and pins
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika |
| Product | SikaGrout-328 |
| Part no. | 107608 |
| Unit | 50 lb bag |
| ASTM | C1107 Grade B and C |
| 28-day dry pack | 10,000 psi (ASTM C109) |
| Thickness | 1/2 inch to 6 inch |
| Coverage | 0.44 ft3 at fluid consistency |
| USDA | Certifiable |
| Shelf life | 9 months |
Product documents: SikaGrout-328 Product Data Sheet (PDF)
Frequently Asked Questions
What size is SikaGrout 328?
The bag is 50 lb (22.7 kg), part 107608.
What base-plate work uses SikaGrout 328?
Machinery, base plates, and sole plates that need maximum effective bearing area to transfer load. Also precast panels, beams, columns, and curtain walls.
What mix water does SikaGrout 328 need?
Dry pack 5.5-6.0 pints, plastic 6.5-7.0, flowable 7.0-7.5, fluid 8.0-8.5 pints per bag.
What 28-day compressive strength does SikaGrout 328 have?
Dry pack 10,000 psi, plastic 8,200 psi, flowable 8,000 psi, fluid 7,500 psi at 73 F (ASTM C109).
What lift thickness does SikaGrout 328 allow?
1/2 inch minimum to 6 inch maximum. Thicker placements need Sika Technical Services.
What ASTM C1107 grade does SikaGrout 328 meet?
Grade B and C. It is USDA certifiable. Coverage is 0.44 ft3 per bag at fluid consistency.
