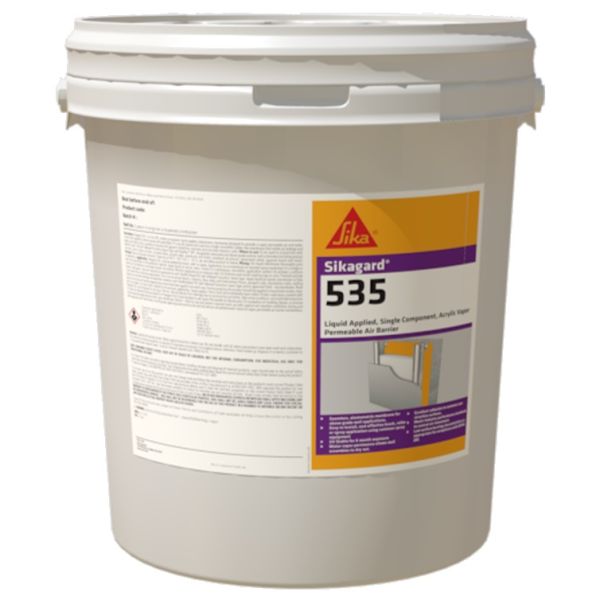

Sika Sikagard 535 5 Gallon Pail 465458
Sikagard-535 is a low-VOC liquid-applied acrylic vapor-permeable air barrier in a 5 gallon pail for above-grade wall assemblies. It covers approximately 80 sf/gal at 40 mils dry and resists air leakage while letting the wall dry out.
- Vapor-permeable air and water barrier for above-grade walls
- Approximately 80 sf/gal coverage at 40 mils dry film
- ABAA evaluated with ASTM E 2178 and E 2357 passes
$264.23
Sikagard-535
Sikagard-535 is a low-VOC, single-component liquid-applied acrylic vapor-permeable air and water barrier for above-grade wall assemblies on plywood, gypsum sheathing, concrete, and CMU. This 5 gallon pail (part 465458) places at approximately 80 sf/gal for 40 mils dry, passes ASTM E 2178 and E 2357, and is evaluated by the Air Barrier Association of America. It cures to a tough monolithic membrane with approximately 6 perms vapor permeance, UV stability for 12 months of exposure, and Class A flame/smoke ratings.
Key Features
- Low-VOC single-component liquid-applied acrylic air barrier
- Vapor permeable at approximately 6 perms
- Coverage approximately 80 sf/gal to achieve 40 mils dry
- Passes ASTM E 2178 air permeance and ASTM E 2357 assembly leakage
- UV stable for 12 months of exposure
- Evaluated by the Air Barrier Association of America
Applications
- Works on above-grade exterior wall assemblies
- Plywood and gypsum sheathing air-barrier coats
- Precast, cast-in-place concrete, and concrete block walls
- Works with Sikagard-540 Plus Tape and flashing sealants on transitions
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika |
| Product | Sikagard-535 |
| Part no. | 465458 |
| Unit | 5 gallon pail |
| Chemistry | Liquid-applied acrylic vapor-permeable air barrier |
| Coverage | Approximately 80 sf/gal at 40 mils dry |
| Vapor permeance | Approximately 6 perms |
| Elongation | Approximately 100% |
| Air permeance | Passes ASTM E 2178 |
| Assembly leakage | Passes ASTM E 2357 |
| Sets to touch | 6 to 12 hours |
| UV exposure | 12 months |
Product documents: Sikagard-535 Product Data Sheet (PDF)
Frequently Asked Questions
What coverage does Sikagard-535 need for 40 mils dry?
Apply at approximately 80 sf/gal to achieve a uniform 40 mil dry film thickness.
What air-barrier tests does Sikagard-535 pass?
It passes ASTM E 2178 air permeance and ASTM E 2357 assembly air leakage, and is evaluated by ABAA.
What vapor permeance does cured Sikagard-535 keep?
Approximately 6 perms (ASTM E-96B), so wall assemblies can dry while resisting air and water.
What substrates take Sikagard-535?
Above-grade plywood, gypsum sheathing, precast and cast-in-place concrete, and concrete masonry units.
What UV exposure window does Sikagard-535 allow?
UV stable for 12 months of exposure. Longer rainscreen exposure needs Technical Services guidance.
What size is the Sikagard-535 pail on this page?
This page is the 5 gallon pail, part 465458. The PDS also covers 55 gallon drums.
