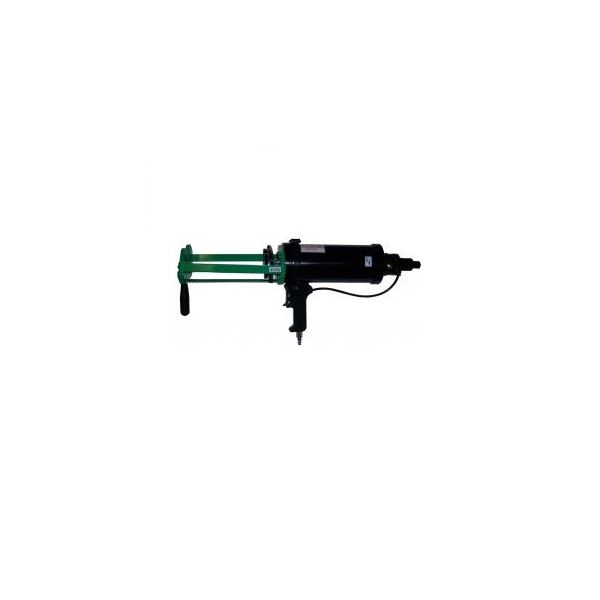

Newborn Model 850A75 Pneumatic Cartridge Applicator
Newborn Model 850A75 is a high-thrust pneumatic Dual-Component applicator for two-part cartridges up to 750 ml. Shop air drives 1100 lb of thrust at 100 psi on a 4 in cylinder for Dual-Component work up to 750 ml.
- 750 ml x 750 ml Dual-Component cartridges on a 4 in cylinder
- 600 ml Dual-Component SNAP DISK sets on high-thrust 750 ml-class work
- Air dump stops the Dual-Component bead on 750 ml cartridges
$621.51
Availability:
In stock
Drop Shipped Newborn Model 850A75 Pneumatic Cartridge Applicator
Newborn Model 850A75 is a Dual-Component pneumatic applicator for two-part cartridges up to 750 ml. It is used on Dual-Component concrete and crack-repair beads up to 750 ml when shop air is already on the deck. It is placed on 750 ml x 750 ml two-part cartridges, plus SNAP DISK sets for 750 ml, 600 ml, and 300 ml Dual-Component pairs. SNAP DISK snap disks convert Dual-Component mix ratio in seconds without taking the tool apart. Shop air drives 1100 lbs of thrust at 100 psi on a 4 in cylinder for high-thrust 750 ml Dual-Component work.
Key Features
- Dual-Component beads up to 750 ml at 1100 lbs on a 4 in cylinder
- Concrete and crack repair Dual-Component work up to 750 ml
- SNAP DISK Dual-Component mix-ratio conversion on 750 ml high-thrust work
- 750 ml x 750 ml Dual-Component production beads
- 600 ml Dual-Component SNAP DISK sets on 750 ml-class work
- Air dump valve stops the Dual-Component bead on 750 ml cartridges
Applications
- Dual-Component beads up to 750 ml on concrete and crack repair.
- Masonry Dual-Component 750 ml-class shop-air beads.
- 750 ml x 750 ml Dual-Component high-thrust production beads.
- SNAP DISK Dual-Component mix-ratio conversion on 750 ml two-part cartridges.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Newborn |
| Model | 850A75 |
| Type | Multi Ratio Pneumatic Applicator |
| Power | Pneumatic |
| Nominal thrust | 1100 lbs at 100 psi |
| Cylinder | 4 in |
| Capacity | 750 ml x 750 ml; 750 ml x 300 ml; 750 ml x 75 ml; 600 ml x 600 ml; 600 ml x 300 ml; 300 ml x 300 ml; 300 ml x 75 ml (one set included, others sold separately) |
| Conversion | SNAP DISK snap-in / snap-out push disks |
| Weight | 10.8 lbs |
| Project type | Concrete and Crack Repair & Masonry |
Product documents: Newborn 850A75 product page
Frequently Asked Questions
What work is Newborn Model 850A75 used on?
Newborn Model 850A75 runs Dual-Component beads up to 750 ml on concrete and crack-repair and masonry, with 1100 lbs of thrust at 100 psi on a 4 in cylinder.
What size is Newborn Model 850A75?
Newborn Model 850A75 fits Dual-Component cartridges up to 750 ml, including 750 ml x 750 ml plus 750 ml, 600 ml, and 300 ml SNAP DISK sets, with 1100 lbs of thrust at 100 psi on a 4 in cylinder.
What 750 ml x 750 ml Dual-Component production bead runs on Newborn Model 850A75?
Newborn Model 850A75 runs Dual-Component 750 ml x 750 ml production beads at 1100 lbs on a 4 in cylinder, with extra SNAP DISK sets sold separately.
What 600 ml Dual-Component SNAP DISK sets sit on Newborn Model 850A75?
Newborn Model 850A75 also accepts 600 ml x 600 ml and 600 ml x 300 ml Dual-Component SNAP DISK sets along with 750 ml and 300 ml classes.
What air dump valve stops Dual-Component flow on Newborn Model 850A75?
An air dump valve on Newborn Model 850A75 stops Dual-Component flow instantly when shop air is released on 750 ml-class work.
What 750 ml x 300 ml Dual-Component SNAP DISK conversion sits on Newborn Model 850A75?
SNAP DISK conversion on Newborn Model 850A75 includes a 750 ml x 300 ml Dual-Component pair, snapped on or off the push rod without taking the tool apart.
