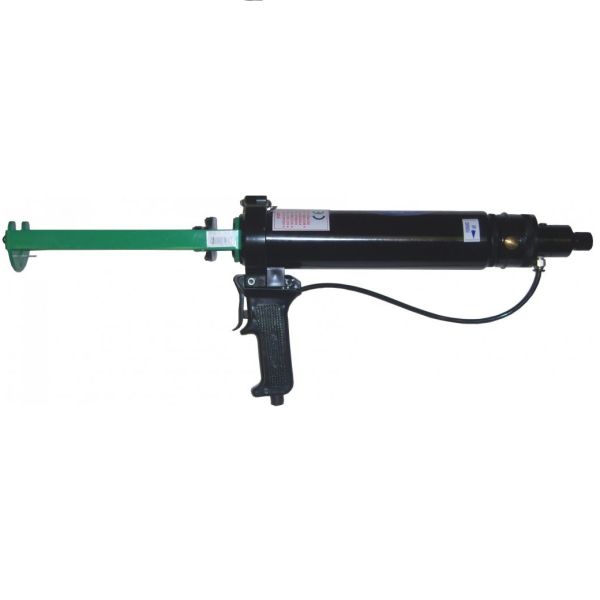

Newborn Model 830A15 Pneumatic Cartridge Applicator
Newborn Model 830A15 is a pneumatic Dual-Component applicator for 150 ml two-part cartridges. Shop air drives 490 lb of thrust at 100 psi on a 2.5 in cylinder.
- 150 ml x 150 ml, 150 ml x 75 ml, and 75 ml x 75 ml two-part cartridges
- SNAP DISK changes ratio without taking the tool apart
- Air dump stops the bead; 1/4 in NPT quick coupler
$207.19
Availability:
In stock
Drop Shipped Newborn Model 830A15 Pneumatic Cartridge Applicator
Newborn Model 830A15 is a Dual-Component pneumatic applicator for 150 ml two-part cartridges. It is used on Dual-Component 150 ml beads when shop air is already on the deck. It is placed on 150 ml x 150 ml, 150 ml x 75 ml, and 75 ml x 75 ml two-part cartridges. SNAP DISK snap disks convert Dual-Component mix ratio in seconds without taking the tool apart. A patented cartridge stabilizing plate holds the cartridge, an air dump valve stops the bead, and shop air drives 490 lbs of thrust at 100 psi on a 2.5 in cylinder.
Key Features
- Dual-Component 150 ml-class two-part beads on shop-air decks
- 490 lbs of thrust at 100 psi on a 2.5 in cylinder
- SNAP DISK Dual-Component mix-ratio conversion without taking the tool apart
- Patented cartridge stabilizing plate on 150 ml Dual-Component cartridges
- Air dump valve stops the Dual-Component bead on trigger release
- 1/4 in NPT female quick coupler for shop-air Dual-Component work
Applications
- Dual-Component 150 ml two-part beads on shop-air decks.
- 150 ml x 150 ml Dual-Component production beads.
- 150 ml x 75 ml and 75 ml x 75 ml Dual-Component mix-ratio work.
- SNAP DISK Dual-Component mix-ratio conversion on 150 ml two-part cartridges.
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Newborn |
| Model | 830A15 |
| Type | Multi Ratio Pneumatic Applicator |
| Category | Dual-Component |
| Nominal thrust | 490 lbs at 100 psi |
| Cylinder | 2.5 in |
| Capacity | 150 ml x 150 ml; 150 ml x 75 ml; 75 ml x 75 ml (one set included, others sold separately) |
| Conversion | SNAP DISK snap-in / snap-out push disks |
| Weight | 5.55 lbs |
| Coupler | 1/4 in NPT female quick coupler |
Product documents: Newborn 830A15 product page
Frequently Asked Questions
What work is Newborn Model 830A15 used on?
Newborn Model 830A15 runs Dual-Component 150 ml two-part cartridge beads on shop-air decks, with 490 lbs of thrust at 100 psi on a 2.5 in cylinder.
What size is Newborn Model 830A15?
Newborn Model 830A15 fits 150 ml x 150 ml, 150 ml x 75 ml, and 75 ml x 75 ml Dual-Component cartridges, with 490 lbs of thrust at 100 psi on a 2.5 in cylinder.
What SNAP DISK conversion fits Newborn Model 830A15 150 ml two-part cartridges?
SNAP DISK snap disks convert Dual-Component mix ratio on Newborn Model 830A15 in seconds by snapping the matching disk on or off the push rod, with extra ratio sets sold separately.
What patented cartridge stabilizing plate holds Dual-Component cartridges on Newborn Model 830A15?
A patented cartridge stabilizing plate on Newborn Model 830A15 holds Dual-Component 150 ml two-part cartridges during the bead and works with SNAP DISK ratio disks.
What 75 ml x 75 ml Dual-Component cartridge set fits Newborn Model 830A15?
Newborn Model 830A15 accepts a 75 ml x 75 ml Dual-Component set along with 150 ml x 150 ml and 150 ml x 75 ml, with extra SNAP DISK sets sold separately.
What 1/4 in NPT quick coupler joins shop air to Newborn Model 830A15?
A 1/4 in NPT female quick coupler on Newborn Model 830A15 joins the Dual-Component applicator to the shop-air line.
