Kraft Tool 16in Diameter Chamfer Tube Bronze Edger Wood CF383

Kraft Tool chamfer tube edger is a one-piece bronze hand tool for a 45° chamfer on 16 in round concrete piers. Belt-polished blade with a 1 in lip and wood handle.

Fits 16 in diameter round support columns
45° chamfer with a 1 in lip on the cylinder
wood handle on a belt-polished bronze casting

$54.53

Drop Shipped

Details

Kraft Tool CF383 - 16 In Chamfer Wood Handle

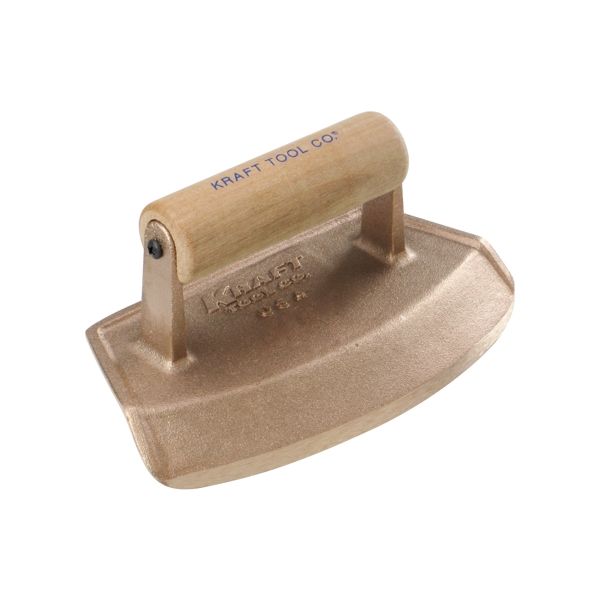

Kraft Tool CF383 is a 16 in diameter chamfer tube bronze edger with a smooth wood handle. It is used to put a 45° chamfer on round concrete support piers. The belt-polished one-piece bronze casting is 7-1/2 in long with a 1 in lip and turned-up edges so it tracks around the column without gouging. The 4-1/2 in wood handle is secured to the casting for a comfortable grip.

Key Features

Fits 16 in round support columns
7-1/2 in belt-polished bronze blade
45° lip, 1 in down the cylinder
Turned-up edges on plastic concrete
Smooth wood handle, 4-1/2 in

Applications

16 in round support columns.
45° chamfer on the cylinder top.
Tracking around plastic concrete piers.

Technical Specifications

Property	Value
Pattern	16 in (406.4 mm) tube chamfer
Blade length	7-1/2 in (190.5 mm)
Blade width	4 in (101.6 mm)
Radius	45°
Lip	1 in (25.4 mm)
Handle material	Wood
Handle length	4-1/2 in (114.3 mm)
Finish	Belt polished
