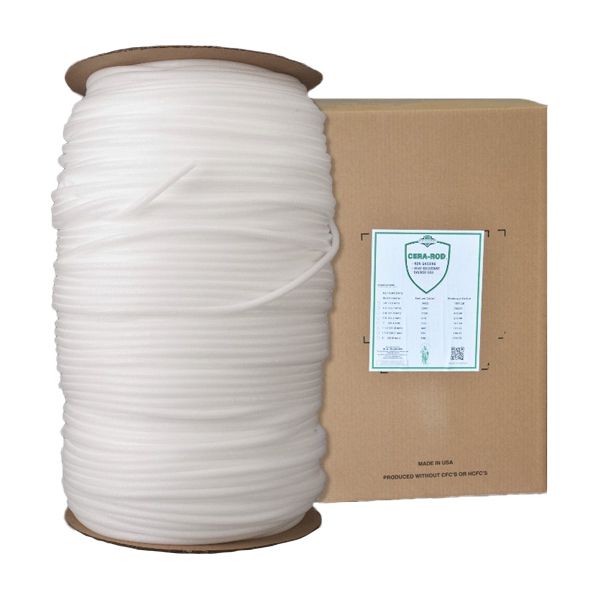

WR Meadows CERA-ROD 1/2 Inch Backer Rod - 2500 LF Carton
WR Meadows CERA-ROD is a heat-resistant, non-gassing cross-linked polyethylene backer rod, offered here as a 1/2 inch diameter carton of 2500 LF. It is intended for use with hot-applied joint sealants in Portland cement or asphalt concrete joints and large cracks.
- 1/2 inch (12.7 mm) diameter, 2500 LF per carton, 1 spool per carton
- Will not melt, shrink, evaporate, or stain under hot sealant; temperature limit 410 F
- Meets ASTM D5249 Type 1 and Type 3
$345.75
Drop Shipped
WR Meadows CERA-ROD 1/2 Inch Backer Rod - 2500 LF Carton
WR Meadows CERA-ROD is a closed-cell, round, flexible, continuous-length backer rod extruded from cross-linked polyethylene. It is non-absorbent, non-gassing, non-staining, and non-shrinking, and it keeps its original diameter when exposed to high sealant temperatures. In joints or large cracks in Portland cement or asphalt concrete, it sets the correct sealant reservoir, holds joint depth, stops sealant run-out through the bottom of the joint, and acts as a bond breaker against bottom-side adhesion.
Key Features
- Works in concrete joints and cracks and in asphalt cracks
- Will not melt, shrink, evaporate, or stain with hot-applied sealants
- Keeps its original diameter and stays non-gassing at high sealant temperatures
- Prevents run-out through voids or the joint bottom, which reduces sealant loss
- Acts as a bond breaker so sealant does not adhere to the joint bottom
Applications
- Joints and large cracks in Portland cement concrete
- Joints and large cracks in asphalt concrete
- Crack and joint sealing with hot-applied sealants
- Joints that need a controlled sealant reservoir depth
Technical Specifications
| Property | Value |
|---|---|
| Material | Closed-cell, cross-linked polyethylene |
| Color | White |
| Diameter | 1/2 inch (12.7 mm) |
| Length per carton | 2500 LF (762 m) |
| Carton contents | 1 spool per carton |
| Compression/deflection | About 8 psi at 25% deflection |
| Temperature limit | 410 F (210 C) |
| Standards | ASTM D5249 Type 1, Type 3 |
| Rod sizing | 1/8 inch larger than the joint width for joints up to 3/4 inch; 1/4 inch larger for joints 3/4 inch and wider |
| Pack | Carton, 2500 LF |
| Part number | 4660500 |
Product documents: WR Meadows CERA-ROD Data Sheet (PDF)
Frequently Asked Questions
What sealants is CERA-ROD used with?
CERA-ROD is intended for hot-applied joint sealants. It will not melt, shrink, evaporate, or stain, and it stays non-gassing when exposed to high sealant temperatures. Its temperature limit is 410 F (210 C).
How do I choose the CERA-ROD diameter?
For joint widths up to 3/4 inch, choose a rod 1/8 inch larger than the joint width. For joints 3/4 inch and wider, add 1/4 inch to the joint width when selecting the rod. CERA-ROD must be held in compression to work.
How is CERA-ROD installed?
Remove all dirt and foreign matter from the crack or joint. Install the rod with a single-wheeled or three-wheeled roller, depending on the work, and avoid stretching or puncturing it.
How soon can sealant go on after CERA-ROD is installed?
Hot-applied joint sealants from WR Meadows can go on immediately after the rod is in place.
