Simpson Strong-Tie Titen HD Heavy-Duty Screw Anchor 5/8 X 8 THDB62800H Case 10

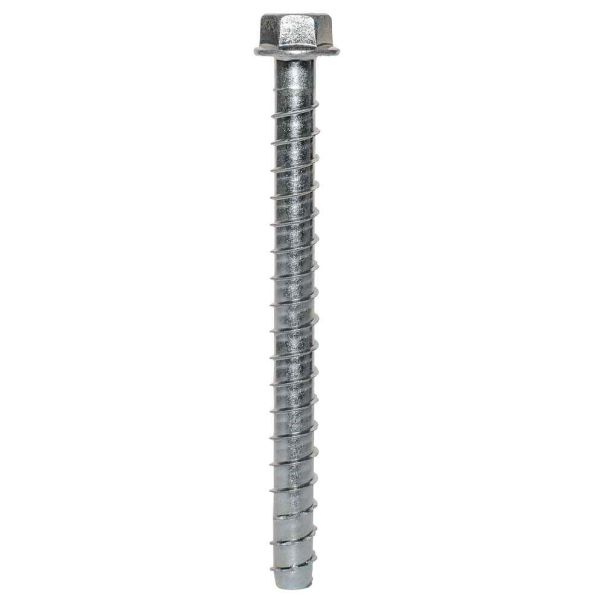

Titen HD 5/8 x 8 hex-washer screw anchor, model THDB62800H. Carbon steel, zinc plated for dry interiors. Box of 10.
- 5/8 x 8, model THDB62800H, box of 10
- Drill 5/8 in; overdrill about 1/2 in
- Same 5/8 in material as the 6 in length
$78.86
Availability:
In stock
Drop Shipped Titen HD 5/8 x 8 Screw Anchor, THDB62800H
Titen HD is a high-strength carbon steel screw anchor for cracked and uncracked concrete and uncracked masonry. This 5/8 x 8 hex-washer head, model THDB62800H, ships a 10-count box and is zinc plated for dry interior work. Drill a 5/8 in hole, overdrill about 1/2 in for tap dust, and drive until the washer seats. The same 5/8 in material is also the 6 in length. 1/2 in and 3/8 in Titen HD are listed separately.
Looking for another size?
Key Features
- High-strength screw for cracked and uncracked concrete
- Uncracked masonry too
- 5/8 x 8 hex-washer head, model THDB62800H, box of 10
- Drill 5/8 in; overdrill about 1/2 in; 15/16 in wrench
- Drive until the washer seats; zinc plated for dry interiors
- Same 5/8 in material as the 6 in length
Applications
- Sill plates, ledgers, and post bases
- Seating and holdowns
- Temporary formwork and bracing you may pull later
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Titen HD |
| Model | THDB62800H |
| Size | 5/8 x 8 |
| Head | Hex washer |
| Coating | Zinc plated, dry interior |
| Box qty | 10 |
| Drill bit | 5/8 in |
| Wrench | 15/16 in |
| Overdrill | 1/2 in |
| Thread length | 5 1/2 in |
| Other 5/8 in length | 6 in, live |
Frequently Asked Questions
What is this?
A 5/8 x 8 Titen HD hex-washer screw anchor, model THDB62800H, in a 10-count box. Zinc plated for dry interior work.
How do I install it?
Drill a 5/8 in ANSI hole, overdrill about 1/2 in, blow it clean (overhead can stay dusty), then drive until the washer seats.
Can I use it outdoors?
This zinc plated carbon steel is for dry interiors. Mechanically galvanized and stainless Titen HD are different SKUs and are not listed here.
What other 5/8 in length is live?
The 6 in 5/8 in Titen HD. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
