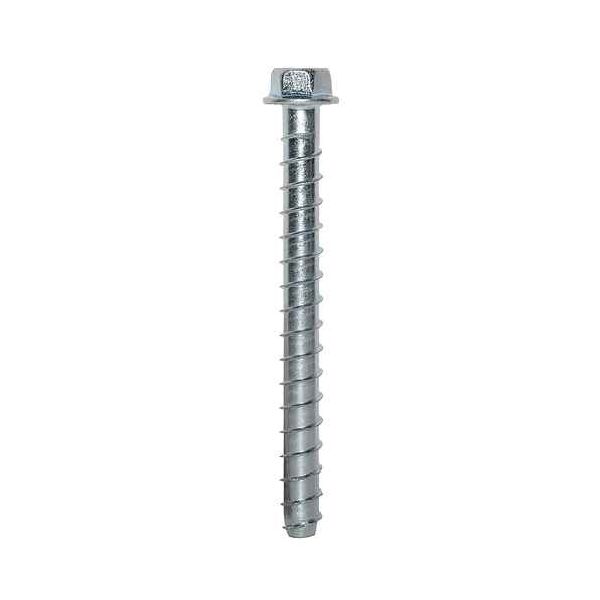

Simpson Strong Tie Titen HD Heavy-Duty Screw Anchor 1/2 X 5 THD50500H Case 20
Titen HD 1/2 x 5 hex-washer screw anchor, model THD50500H. Carbon steel, zinc plated for dry interiors. Box of 20.
- 1/2 x 5, model THD50500H, box of 20
- Drill 1/2 in; overdrill about 1/2 in
- Same 1/2 in material as the 3 in, 4 in, 6 in, and 8 in lengths
$59.79
Availability:
In stock
Drop Shipped Titen HD 1/2 x 5 Screw Anchor, THD50500H
Titen HD is a high-strength carbon steel screw anchor for cracked and uncracked concrete and uncracked masonry. This 1/2 x 5 hex-washer head, model THD50500H, ships a 20-count box and is zinc plated for dry interior work. Drill a 1/2 in hole, overdrill about 1/2 in for tap dust, and drive until the washer seats. The same 1/2 in material is also the 3 in, 4 in, 6 in, and 8 in lengths.
Looking for another size?
Key Features
- High-strength screw for cracked and uncracked concrete
- Uncracked masonry too
- 1/2 x 5 hex-washer head, model THD50500H, box of 20
- Drill 1/2 in; overdrill about 1/2 in; 3/4 in wrench
- Drive until the washer seats; zinc plated for dry interiors
- Same 1/2 in material as the 3 in, 4 in, 6 in, and 8 in lengths
Applications
- Sill plates, ledgers, and post bases
- Seating and holdowns
- Temporary formwork and bracing you may pull later
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Titen HD |
| Model | THD50500H |
| Size | 1/2 x 5 |
| Head | Hex washer |
| Coating | Zinc plated, dry interior |
| Box qty | 20 |
| Drill bit | 1/2 in |
| Wrench | 3/4 in |
| Overdrill | 1/2 in |
| Thread length | 4 1/2 in |
| Other 1/2 in lengths | 3, 4, 6, and 8 in, live |
Frequently Asked Questions
What is this?
A 1/2 x 5 Titen HD hex-washer screw anchor, model THD50500H, in a 20-count box. Zinc plated for dry interior work.
How do I install it?
Drill a 1/2 in ANSI hole, overdrill about 1/2 in, blow it clean (overhead can stay dusty), then drive until the washer seats.
Can I use it outdoors?
This zinc plated carbon steel is for dry interiors. Mechanically galvanized and stainless Titen HD are different SKUs and are not listed here.
What other 1/2 in lengths are live?
The 3 in, 4 in, 5 in, 6 in, and 8 in 1/2 in Titen HD. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
