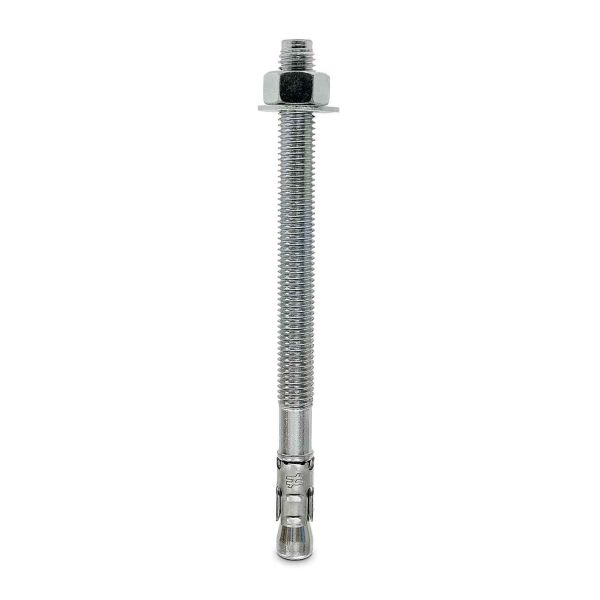

Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor 3/4 X 6 1/4 Case 10 STB2-75614
Strong-Bolt 2 3/4 x 6-1/4 wedge anchor, model STB2-75614. Zinc-plated carbon steel. Box of 10 with nut and washer.
- 3/4 x 6-1/4, model STB2-75614, box of 10
- Drill 3/4 in; tighten to 150 ft-lbf; no impact wrench
- Other live 3/4 in lengths 4-3/4 and 10
$30.12
Availability:
In stock
Drop Shipped Strong-Bolt 2 Wedge Anchor 3/4 x 6-1/4, STB2-75614
Strong-Bolt 2 is a zinc-plated carbon steel wedge anchor for cracked and uncracked concrete and for masonry. This 3/4 x 6-1/4, model STB2-75614, ships a 10-count box with nut and washer. Drill a 3/4 in hole, drive until the washer seats, then tighten to 150 ft-lbf. Do not use an impact wrench. Live 3/4 in lengths are 4-3/4, 6-1/4, and 10. Titen HD screws and other diameters are listed separately.
Looking for another size?
Key Features
- Wedge anchor for cracked and uncracked concrete
- Masonry too
- 3/4 x 6-1/4, model STB2-75614, box of 10
- Drill 3/4 in; tighten to 150 ft-lbf; no impact wrench
- Live 3/4 in lengths 4-3/4, 6-1/4, and 10
Applications
- Sill plates, ledgers, and post bases
- Seating, holdowns, and equipment bases
- Jobs specified a 3/4 in wedge, not a screw
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Strong-Bolt 2 |
| Model | STB2-75614 |
| Size | 3/4 x 6-1/4 |
| Type | Wedge |
| Coating | Zinc-plated carbon steel |
| Box qty | 10 |
| Drill bit | 3/4 in |
| Install torque | 150 ft-lbf |
| Thread length | 3 15/16 in |
| Fixture hole | 7/8 in |
| Not | Titen HD screw |
Frequently Asked Questions
What is this?
A 3/4 x 6-1/4 Strong-Bolt 2 wedge, model STB2-75614, box of 10 with nut and washer.
How do I install it?
Drill a 3/4 in hole to depth, drive until the washer seats, tighten to 150 ft-lbf. Do not use an impact wrench.
Titen HD?
No. Titen HD is a screw. Strong-Bolt 2 is a wedge. They are listed separately.
What other 3/4 in lengths are live?
4-3/4, 6-1/4, and 10. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
