Simpson Strong-Tie Strong-Bolt 2 Wedge Anchor 1/2 X 4 1/4 25 per Pack STB2-50414

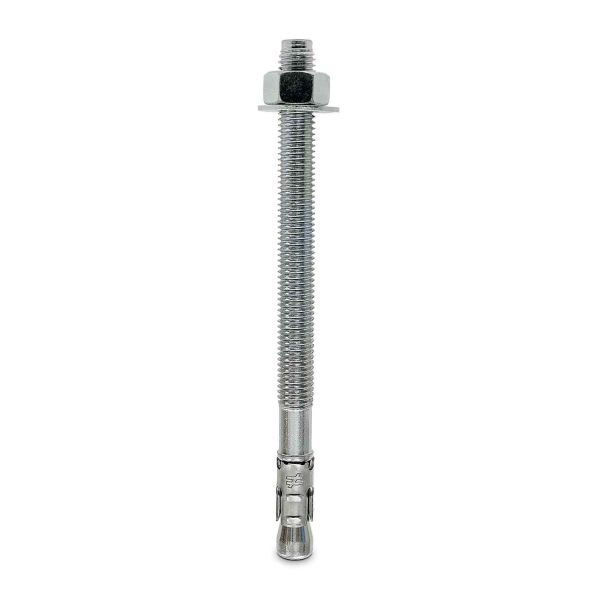

Strong-Bolt 2 1/2 x 4-1/4 wedge anchor, model STB2-50414. Zinc-plated carbon steel. Box of 25 with nut and washer.
- 1/2 x 4-1/4, model STB2-50414, box of 25
- Drill 1/2 in; tighten to 60 ft-lbf; no impact wrench
- Other live 1/2 in lengths 2-3/4, 5-1/2, and 7
$22.93
Availability:
In stock
Drop Shipped Strong-Bolt 2 Wedge Anchor 1/2 x 4-1/4, STB2-50414
Strong-Bolt 2 is a zinc-plated carbon steel wedge anchor for cracked and uncracked concrete and for masonry. This 1/2 x 4-1/4, model STB2-50414, ships a 25-count box with nut and washer. Drill a 1/2 in hole, drive until the washer seats, then tighten to 60 ft-lbf. Do not use an impact wrench. Live 1/2 in lengths are 2-3/4, 4-1/4, 5-1/2, and 7. Titen HD screws and other diameters are listed separately.
Looking for another size?
Key Features
- Wedge anchor for cracked and uncracked concrete
- Masonry too
- 1/2 x 4-1/4, model STB2-50414, box of 25
- Drill 1/2 in; tighten to 60 ft-lbf; no impact wrench
- Live 1/2 in lengths 2-3/4, 4-1/4, 5-1/2, and 7
Applications
- Sill plates, ledgers, and post bases
- Seating, holdowns, and equipment bases
- Jobs specified a 1/2 in wedge, not a screw
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | Strong-Bolt 2 |
| Model | STB2-50414 |
| Size | 1/2 x 4-1/4 |
| Type | Wedge |
| Coating | Zinc-plated carbon steel |
| Box qty | 25 |
| Drill bit | 1/2 in |
| Install torque | 60 ft-lbf |
| Thread length | 2 9/16 in |
| Fixture hole | 9/16 in |
| Not | Titen HD screw |
Frequently Asked Questions
What is this?
A 1/2 x 4-1/4 Strong-Bolt 2 wedge, model STB2-50414, box of 25 with nut and washer.
How do I install it?
Drill a 1/2 in hole to depth, drive until the washer seats, tighten to 60 ft-lbf. Do not use an impact wrench.
Titen HD?
No. Titen HD is a screw. Strong-Bolt 2 is a wedge. They are listed separately.
What other 1/2 in lengths are live?
2-3/4, 4-1/4, 5-1/2, and 7. Other diameters are listed separately.
Who makes it?
Simpson Strong-Tie.
