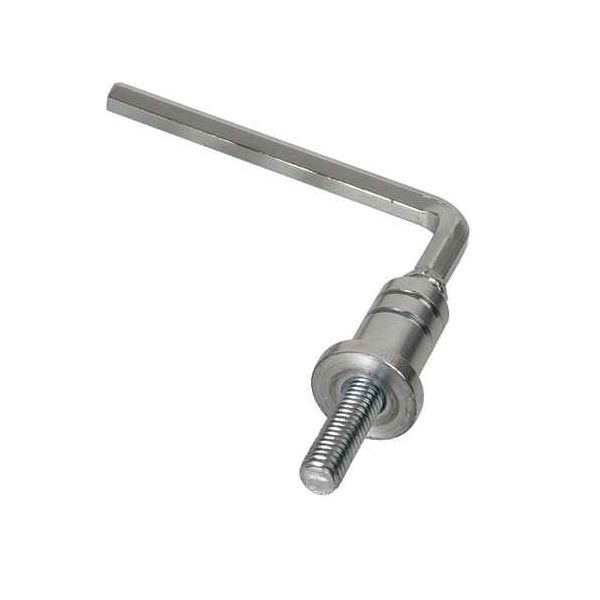

Simpson Strong-Tie HDIASTH Setting Tool for Hollow Material 3/8" Case 25 HDIASTH37
HDIASTH 3/8 in hollow-base setting tool, model HDIASTH37. Carton of 25. Sets HDIA37 in CMU and hollow-core. Not a DIAB tool.
- 3/8 in hollow setting tool, model HDIASTH37, carton 25
- Thread HDIA37 on, tap to the face, rotate two turns
- Solid DIAB setting tools listed separately
$124.64
Availability:
In stock
Drop Shipped HDIASTH Hollow Setting Tool 3/8, HDIASTH37
HDIASTH37 is the 3/8 in setting tool for Simpson Strong-Tie Hollow Drop-In anchors in hollow base: CMU and hollow-core plank. It is not a DIAB setting tool. Thread the matching HDIA37 onto the tool, tap until the tool face hits the surface, then rotate at least two turns to set. Carton of 25. Live hollow-tool sizes are 1/4, 5/16, 3/8, 1/2, and 5/8.
Looking for another size?
Key Features
- Setting tool for 3/8 in HDIA in hollow base
- Model HDIASTH37, carton of 25
- Tap until the tool face contacts, then rotate at least two turns
- For CMU and hollow-core plank, not DIAB drop-ins
- Live sizes 1/4, 5/16, 3/8, 1/2, and 5/8
Applications
- Setting 3/8 in HDIA in hollow CMU
- Hollow-core plank hangers
- Jobs that specify the hollow-base HDIA tool
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Product | HDIASTH hollow setting tool |
| Model | HDIASTH37 |
| Size | 3/8 in |
| Carton qty | 25 |
| Sets | HDIA37, HDIA37SS |
| Base | Hollow CMU, hollow-core plank |
| Set method | Tap to face, rotate 2 turns min |
| Not | DIAB / DIAST solid drop-in tool |
| Not | HDIASTS solid-base HDIA tool |
Frequently Asked Questions
Is this an anchor?
No. It is the hollow-base setting tool for 3/8 in HDIA.
DIAB drop-ins?
No. Use DIAST / DIABST for DIAB. Those tools are listed separately.
How do I set?
Thread HDIA37 on the tool, tap until the face contacts, rotate at least two turns, then remove the tool.
What other sizes are live?
1/4, 5/16, 3/8, 1/2, and 5/8.
Who makes it?
Simpson Strong-Tie.
