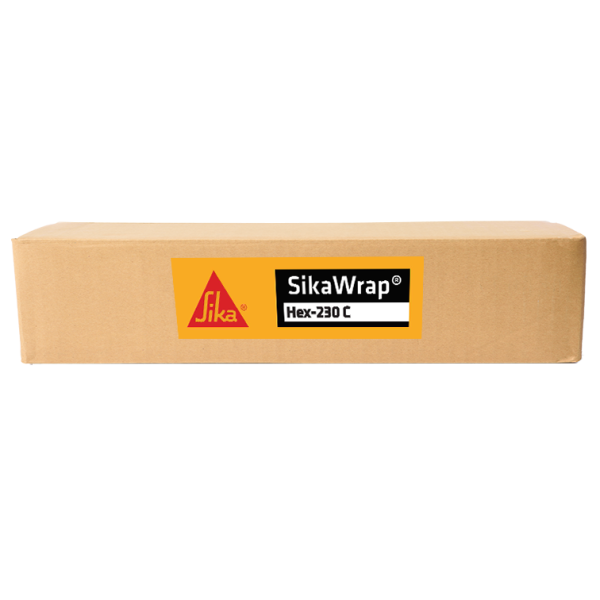

Sika SikaWrap Hex 230C
SikaWrap Hex-230 C is a unidirectional carbon fiber fabric in a 12 in x 150 ft roll for structural strengthening. It field-laminates with Sikadur epoxy for shear, confinement, and flexural CFRP work in confined spaces.
- Unidirectional carbon fiber fabric, 6.7 oz per sq yd
- Lightweight fabric for confined spaces
- ICC ESR-3288 evaluated FRP system
SikaWrap Hex-230 C
SikaWrap Hex-230 C is a unidirectional carbon fiber fabric field-laminated with Sikadur 300, Sikadur Hex 300/306, or Sikadur 330 to form a CFRP strengthening system. This 12 in x 150 ft roll is a lightweight 6.7 oz per sq yd fabric for confined spaces; for a heavier unidirectional option, see SikaWrap Hex-117 C. ICC ESR-3288 covers the system, and wet or dry lay-up both work for shear, confinement, and flexural strengthening.
Key Features
- Unidirectional (0 deg) carbon fiber fabric
- 6.7 oz per sq yd (230 g/m2) area density
- Lightweight fabric for confined spaces
- Wet or dry lay-up application
- Used for shear, confinement, or flexural strengthening
- Approved under ICC ESR-3288
Applications
- Structural strengthening for load increases
- Seismic column wrapping and masonry walls
- Repair after impact, aging, or fire exposure
- Confined-space wraps around complex shapes
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika |
| Product | SikaWrap Hex-230 C |
| Type | Unidirectional carbon fiber fabric |
| Pack | 12 in x 150 ft roll |
| Fiber type | 0 deg unidirectional |
| Area density | 6.7 oz per sq yd (230 g/m2) |
| Nominal ply thickness | 0.015 in design value |
| Design tensile strength | 116.1 ksi |
| Design tensile modulus | 10.83 msi |
| Approval | ICC ESR-3288 |
Product documents: SikaWrap Hex-230 C PDS (PDF)
Frequently Asked Questions
What strengthening work is SikaWrap Hex-230 C used for?
Shear, confinement, and flexural strengthening of structural elements. Typical drivers include load increases, seismic upgrades, damage repair, and design corrections.
What fiber construction does SikaWrap Hex-230 C use?
Unidirectional (0 deg) carbon fiber at 6.7 oz per sq yd with a 0.015 in design nominal ply thickness.
What epoxy laminates SikaWrap Hex-230 C?
Sikadur 300, Sikadur Hex 300/306, or Sikadur 330 form the CFRP laminate. Wet and dry lay-up methods are both published.
What design tensile strength does SikaWrap Hex-230 C provide?
Design tensile strength is 116.1 ksi by ASTM D3039, or 1.7 kips per inch per ply by ASTM D7565.
What ICC evaluation covers SikaWrap Hex-230 C?
The system is approved under ICC ESR-3288 with IBC 2015 compliance noted on the sheet.
What lay-up methods suit SikaWrap Hex-230 C?
Wet or dry lay-up. The lightweight fabric is suited to confined spaces and complex shapes.
