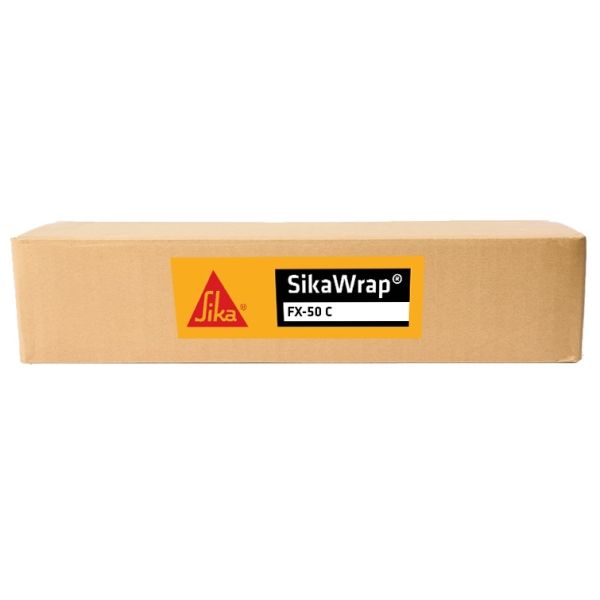

Sika SikaWrap FX-50C 25m Roll 465764
SikaWrap FX-50 C is a unidirectional carbon fiber anchor rope in an 82 ft (25 m) roll for structural strengthening. It anchors and connects SikaWrap fabrics through concrete or masonry and works as a flexible near-surface mounted system.
- Carbon fiber rope for SikaWrap fabric anchorage
- Customizable anchor diameter by rope-bundle count
- Prevents fabric-edge delamination in shear strengthening
SikaWrap FX-50 C
SikaWrap FX-50 C is a unidirectional structural carbon fiber rope in a plastic sleeve for anchoring and connecting SikaWrap carbon and glass fiber fabrics. This 82 ft (25 m) roll ties fabric edges into concrete or masonry; pair it with fabrics such as SikaWrap Hex-103 C. Dry fiber tensile strength is 580 x 10^6 psi, and anchor diameter is set by the number of rope bundles.
Key Features
- Unidirectional structural carbon fiber rope in a plastic sleeve
- Anchors and connects SikaWrap carbon and glass fiber fabrics
- Flexible near-surface mounted strengthening option
- Customizable anchor diameter from rope-bundle count
- Dry fiber tensile strength 580 x 10^6 psi
- Impregnates with Sikadur Hex-300; anchorage resins include Sikadur-330
Applications
- Works for SikaWrap fabric anchorage on concrete or masonry
- Connects SikaWrap fabrics through concrete or masonry structures
- Flexible near-surface mounted structural strengthening
- Shear strengthening edges that need delamination control
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Sika |
| Product | SikaWrap FX-50 C |
| Type | Unidirectional carbon fiber anchor rope |
| Pack | 82 ft (25 m) roll |
| Fiber orientation | 0 deg unidirectional |
| Mass per length | 0.04 oz/in (50 g/m) single bundle |
| Dry fiber tensile strength | 580 x 10^6 psi |
| Dry fiber tensile modulus | 3,500 x 10^6 psi |
| Impregnating resin | Sikadur Hex-300 |
| MPN | 465764 |
Product documents: SikaWrap FX-50 C PDS (PDF)
Frequently Asked Questions
What work is SikaWrap FX-50 C used for?
It anchors or connects SikaWrap carbon and glass fiber fabrics on or through concrete and masonry. It also serves as a flexible near-surface mounted strengthening rope.
What fiber construction does SikaWrap FX-50 C use?
Unidirectional (0 deg) black carbon fiber packaged in a plastic sleeve on an 82 ft (25 m) reel.
What dry-fiber tensile strength does SikaWrap FX-50 C have?
Published dry fiber tensile strength is 580 x 10^6 psi (4000 MPa), with tensile modulus 3,500 x 10^6 psi.
What anchor diameters does SikaWrap FX-50 C support?
Anchor diameter is set by rope-bundle count, from 3/8 in (1 bundle) through approximately 1-1/8 in (8 bundles). Drill the hole 0.25 in to 0.375 in larger than the anchor.
What resins impregnate SikaWrap FX-50 C?
Sikadur Hex-300 impregnates the rope. Anchorage resin options include Sikadur-330, Sika AnchorFix-3001, and Sika AnchorFix-500.
What design guides cover SikaWrap FX-50 C systems?
Systems follow ACI 440 and AASHTO guides for externally bonded FRP strengthening of concrete and unreinforced masonry.
