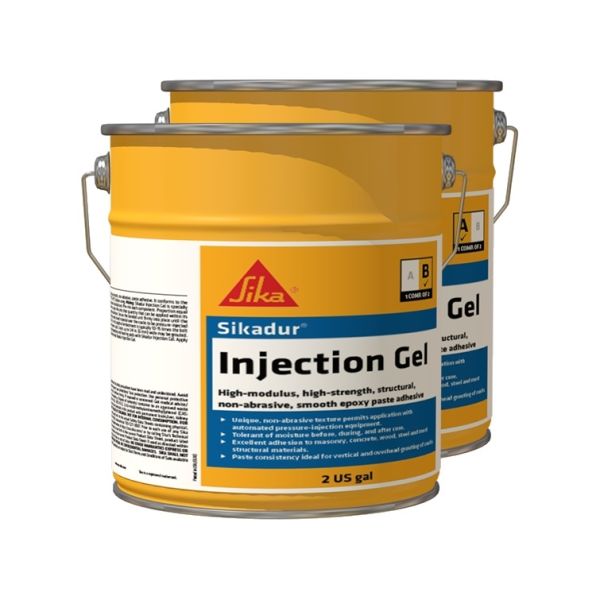

Sika Sikadur Injection Gel 4 Gallon Unit 107732

Sikadur Injection Gel, Standard Set is a 2-component, 100 % solids, moisture-tolerant, high-modulus, highstrength, structural epoxy. When mixed it gives a smooth, non-abrasive, paste adhesive. It conforms to the current ASTM C-881, Types I and IV, Grade-3, Class-C and AASHTO M-235 specifications.

  • Unique, non-abrasive texture permits application with automated pressure-injection equipment.
  • Tolerant of moisture before, during, and after cure.
  • High-modulus, high-strength, structural-paste adhesive.
$410.88
SKU
19314

Sika Sikadur Injection Gel – High-Strength Structural Epoxy Adhesive

Sika Sikadur Injection Gel is a high-modulus, high-strength, two-component structural epoxy adhesive designed for bonding and crack injection applications. This moisture-tolerant, 100% solids epoxy provides excellent adhesion to concrete, masonry, wood, steel, and other structural materials. The smooth, non-abrasive consistency makes it ideal for vertical and overhead applications, while its ability to resist moisture before, during, and after curing ensures superior performance in demanding environments. Whether used for crack injection, anchoring bolts, or sealing joints, Sikadur Injection Gel provides long-lasting durability and strength.

Key Features:

  • High-modulus, high-strength epoxy adhesive
  • Excellent adhesion to concrete, masonry, steel, and wood
  • Moisture-tolerant before, during, and after curing
  • Non-abrasive texture allows easy application with injection equipment
  • Paste consistency for vertical and overhead crack injection
  • 1:1 mixing ratio for simple preparation
  • Compatible with automated injection systems
  • Meets ASTM C-881, Types I and IV, Grade-3, Class-C and AASHTO M-235 specifications

Applications:

  • Structural crack injection up to 1/4 inch (6 mm) wide
  • Anchoring bolts, dowels, and pins
  • Sealing joints in tunnels, tanks, basements, and water vaults
  • Preventive maintenance for corrosion protection
  • Wood truss repairs and re-anchoring of masonry veneers
  • Mechanical grouting for machine base plates and robotic installations

Technical Specifications:

Property Value
Packaging 4-gallon unit (15 L)
Color Gray
Shelf Life 24 months in unopened container
Compressive Strength (ASTM C-109) 10,000 psi (68.9 MPa) at 28 days
Tensile Strength (ASTM D-638) 4,300 psi (29.7 MPa)
Flexural Strength (ASTM D-790) 6,700 psi (46.2 MPa)
Mixing Ratio 1:1 by volume (A:B)



Frequently Asked Questions:

What is the working time of Sika Sikadur Injection Gel?
At 73°F (23°C), the pot life is approximately 30 minutes.

Can this product be used in wet conditions?
Yes, Sikadur Injection Gel is moisture-tolerant and can be applied on damp concrete surfaces.
