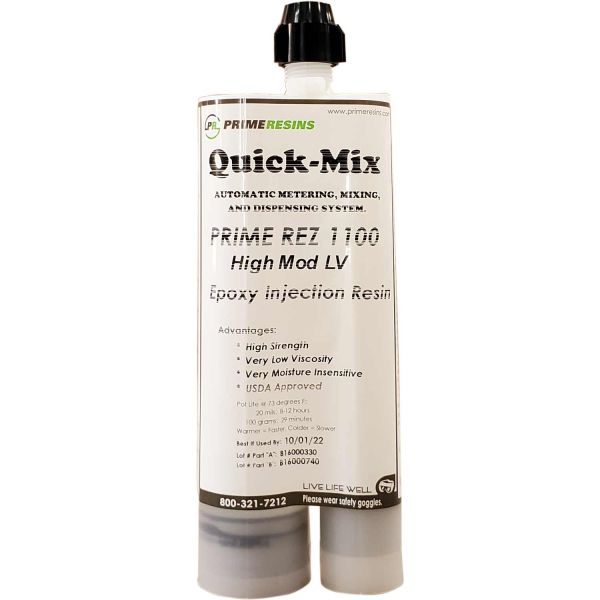

Prime Resins Prime Rez 1100 High Mod LV 2:1 Cartridge
Prime Rez 1100 High Mod LV is a two-component, high-modulus epoxy in a 2:1 Quick Mix cartridge, MPN 1150, for structural crack repair in concrete, masonry, and stone. The low-viscosity resin injects or gravity-feeds tight cracks, including wet and underwater work.
- Injects or gravity-feeds structural cracks, including under water
- Viscosity is 140 to 160 cP at 73 F for tight cracks
- Compressive strength is 8,540 psi on the cured epoxy
$50.58
Availability:
Out of stock
Prime Rez 1100 High Mod LV
Prime Rez 1100 High Mod LV is a two-component, high-modulus epoxy in a 2:1 Quick Mix cartridge, MPN 1150, for structural crack repair in concrete, masonry, and stone. Viscosity is 140 to 160 centipoise at 73 F, so the resin injects or gravity-feeds tight cracks, including wet and underwater work. Compressive strength is 8,540 psi. It conforms to ASTM C881 Type I and II, Grade 1, Class B and C.
Key Features
- High-modulus epoxy is used for structural crack repair
- Viscosity is 140 to 160 cP at 73 F
- Injects or gravity-feeds, including wet and underwater cracks
- Compressive strength is 8,540 psi by ASTM D695
- Conforms to ASTM C881 Type I and II, Grade 1, Class B and C
Applications
- Pressure injection of cracks in concrete, masonry, stone, and wood
- Gravity feed of cracks in horizontal slabs
- Wet and underwater structural crack injection
Technical Specifications
| Property | Value |
|---|---|
| Chemistry | High-modulus epoxy, 2:1 by volume |
| Cartridge | 2:1 Quick Mix, 300 ml / 150 ml, MPN 1150 |
| Viscosity | 140 to 160 cP at 73 F |
| Solids | 100%, no VOCs |
| Compressive | 8,540 psi, ASTM D695 |
| Tensile | 5,110 psi, ASTM D638 |
| Flexural | 10,500 psi, ASTM D790 |
| Bond 14 day | 3,250 psi, ASTM C882 |
| ASTM C881 | Type I and II, Grade 1, Class B and C |
| Min temp | 32 F |
Product documents: Prime Rez 1100 High Mod LV Data Sheet (PDF)
Frequently Asked Questions
What cracks is Prime Rez 1100 High Mod LV used on?
Structural cracks in concrete, masonry, and stone that need a high-modulus epoxy. Typical work includes walls, floors, tanks, dams, parking decks, bridges, retaining walls, and foundations. It also gravity-feeds horizontal cracks and grouts dowels, bolts, and pins.
What cartridge is Prime Rez 1100 High Mod LV on this page?
A 2:1 Quick Mix cartridge, MPN 1150. Tube A is 300 ml and tube B is 150 ml. Ratio is A:B 2:1 by volume. The datasheet also lists 15 gallon units of the same chemistry.
What wet work does Prime Rez 1100 High Mod LV handle?
Excellent wet tolerance, including injection under water. Do not use below 32 F, because ice in the concrete will block bond. Precondition the cartridge to 70 F to 80 F.
What viscosity does Prime Rez 1100 High Mod LV have?
140 to 160 centipoise at 73 F, lower than Prime Rez 1000 High Mod, so it enters tighter cracks. Solids are 100% with no VOCs. Color is amber clear.
What strength does Prime Rez 1100 High Mod LV reach?
Compressive strength is 8,540 psi (ASTM D695). Tensile is 5,110 psi. Flexural is 10,500 psi. 14-day dry bond is 3,250 psi by ASTM C882. Shore D is 80 to 85.
What ASTM C881 class does Prime Rez 1100 High Mod LV meet?
Type I and II, Grade 1, Class B and C. Best if used by 2 years from manufacture in unopened containers stored dry between 40 F and 80 F. Do not freeze.
