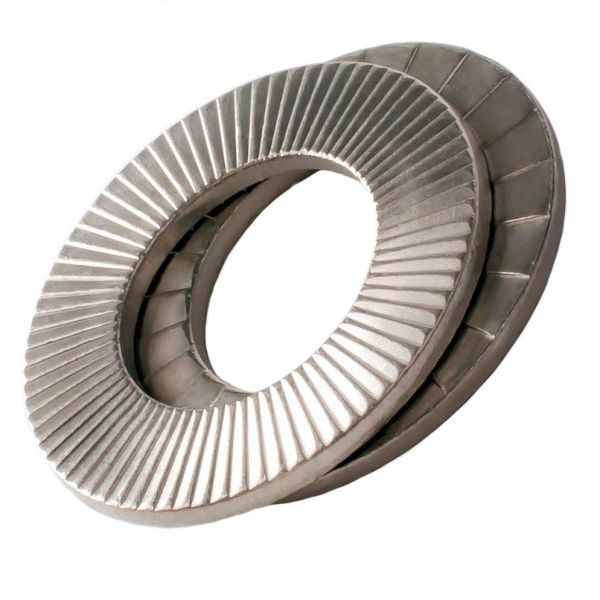

Nord-Lock 7/8in Locking Washer Carbon Steel 1316
Nord-Lock 7/8in Locking Washer Carbon Steel 1316 is a carbon steel wedge-locking washer pair for 7/8 in bolts on vibrating structural steel and rotating equipment.
- The pair covers a typical 7/8 in bearing face with a 34.5 mm outer diameter
- Delta Protekt zinc flake coating is used on carbon steel-to-steel joints
- The pack holds two pairs for repeating 7/8 in joints
$2.88
Availability:
Out of stock
Nord-Lock 7/8in Locking Washer Carbon Steel 1316
Nord-Lock 7/8in Locking Washer Carbon Steel 1316 is a carbon steel wedge-locking washer pair for 7/8 in bolts. It is used on vibrating structural steel and rotating equipment where a standard 34.5 mm outer diameter covers the bearing face. Delta Protekt zinc flake coating and 465 HV1 min hardness keep the pair on steel-to-steel joints through vibration. The coat holds a minimum of 1,000 hours salt spray.
Key Features
- The pair covers a typical 7/8 in bearing face with a 34.5 mm outer diameter
- Delta Protekt zinc flake coating on carbon steel
- Hardness 465 HV1 min
- Two pairs per pack for repeating 7/8 in joints
- One pair under the head or nut on tapped holes, two pairs on through holes
- Temperature range -58 F to 392 F
Applications
- Vibrating structural steel on 7/8 in / 22 mm bolts.
- Rotating equipment on 7/8 in carbon steel joints.
- Tapped holes with a pair under the 7/8 in bolt head.
- Through holes with a pair under the head and a pair under the nut.
Technical Specifications
| Property | Value |
|---|---|
| Bolt size | 22 mm (7/8 in) |
| Inner diameter (d) | 23.4 mm |
| Outer diameter (D) | 34.5 mm |
| Thickness (T) | 3.4 mm |
| Material | Steel EN 1.7182 |
| Hardness | 465 HV1 min |
| Temperature range | -58 F to 392 F (-50 C to 200 C) |
| Pairs per pack | 2 |
| Manufacturer shop article | 3049 |
Product documents: Nord-Lock steel NL22
Frequently Asked Questions
What work is Nord-Lock NL22 used on?
Nord-Lock NL22 is used on vibrating structural steel and rotating equipment with 7/8 in bolts.
What size is Nord-Lock NL22?
Nord-Lock NL22 is a 7/8 in pair with a 23.4 mm inner diameter, 34.5 mm outer diameter, and 3.4 mm thickness.
What salt-spray hour floor does Nord-Lock NL22 keep?
Nord-Lock NL22 keeps a Delta Protekt zinc flake coat with a minimum of 1,000 hours salt spray.
What through-hardened HV1 bar does Nord-Lock NL22 meet?
Nord-Lock NL22 meets a through-hardened hardness of 465 HV1 min.
What pair count does a Nord-Lock NL22 pack hold?
Nord-Lock NL22 comes two pairs per pack for repeating 7/8 in joints.
What pair count sits under a Nord-Lock NL22 tapped-hole head?
Tapped holes on Nord-Lock NL22 use one pair under the head or nut. Through holes use a pair under the head and a pair under the nut.
