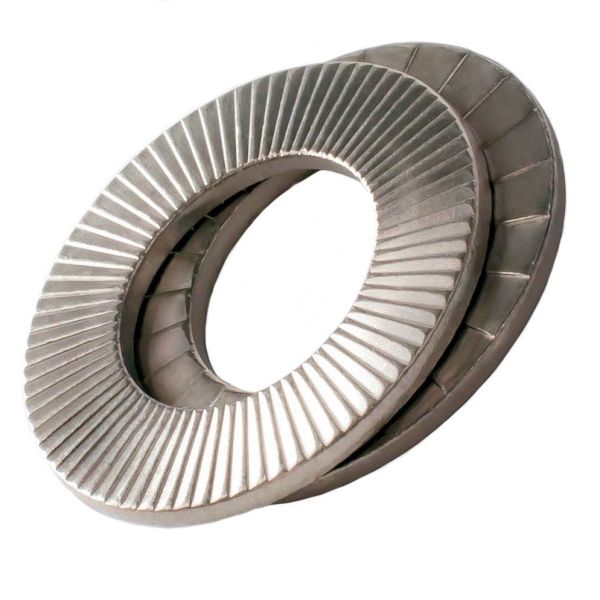

Nord-Lock 5/8in Locking Washer Carbon Steel 1286
Nord-Lock 5/8in Locking Washer Carbon Steel 1286 is a carbon steel wedge-locking washer pair for 5/8 in bolts on vibrating structural steel and rotating equipment.
- The pair covers a typical 5/8 in bearing face with a 25.4 mm outer diameter
- Delta Protekt zinc flake coating is used on carbon steel-to-steel joints
- The pack holds eight pairs for repeating 5/8 in joints
$1.30
Availability:
Out of stock
Nord-Lock 5/8in Locking Washer Carbon Steel 1286
Nord-Lock 5/8in Locking Washer Carbon Steel 1286 is a carbon steel wedge-locking washer pair for 5/8 in bolts. It is used on vibrating structural steel and rotating equipment where a standard 25.4 mm outer diameter covers the bearing face. Delta Protekt zinc flake coating and 465 HV1 min hardness keep the pair on steel-to-steel joints through vibration. The coat holds a minimum of 1,000 hours salt spray.
Key Features
- The pair covers a typical 5/8 in bearing face with a 25.4 mm outer diameter
- Delta Protekt zinc flake coating on carbon steel
- Hardness 465 HV1 min
- Eight pairs per pack for repeating 5/8 in joints
- One pair under the head or nut on tapped holes, two pairs on through holes
- Temperature range -58 F to 392 F
Applications
- Vibrating structural steel on 5/8 in / 16 mm bolts.
- Rotating equipment on 5/8 in carbon steel joints.
- Tapped holes with a pair under the 5/8 in bolt head.
- Through holes with a pair under the head and a pair under the nut.
Technical Specifications
| Property | Value |
|---|---|
| Bolt size | 16 mm (5/8 in) |
| Inner diameter (d) | 17 mm |
| Outer diameter (D) | 25.4 mm |
| Thickness (T) | 3.4 mm |
| Material | Steel EN 1.7182 |
| Hardness | 465 HV1 min |
| Temperature range | -58 F to 392 F (-50 C to 200 C) |
| Pairs per pack | 8 |
| Manufacturer shop article | 1536 |
Product documents: Nord-Lock steel NL16
Frequently Asked Questions
What work is Nord-Lock NL16 used on?
Nord-Lock NL16 is used on vibrating structural steel and rotating equipment with 5/8 in bolts.
What size is Nord-Lock NL16?
Nord-Lock NL16 is a 5/8 in pair with a 17 mm inner diameter, 25.4 mm outer diameter, and 3.4 mm thickness.
What zinc flake coat is on Nord-Lock NL16?
Nord-Lock NL16 has a Delta Protekt zinc flake coating on carbon steel.
What hardness target does Nord-Lock NL16 meet?
Nord-Lock NL16 has a hardness of 465 HV1 min.
What carton pair count does Nord-Lock NL16 ship with?
Nord-Lock NL16 comes eight pairs per pack for repeating 5/8 in joints.
What tapped-hole pair placement does Nord-Lock NL16 take?
Tapped holes on Nord-Lock NL16 take one pair under the head or nut. Through holes take a pair under the head and a pair under the nut.
