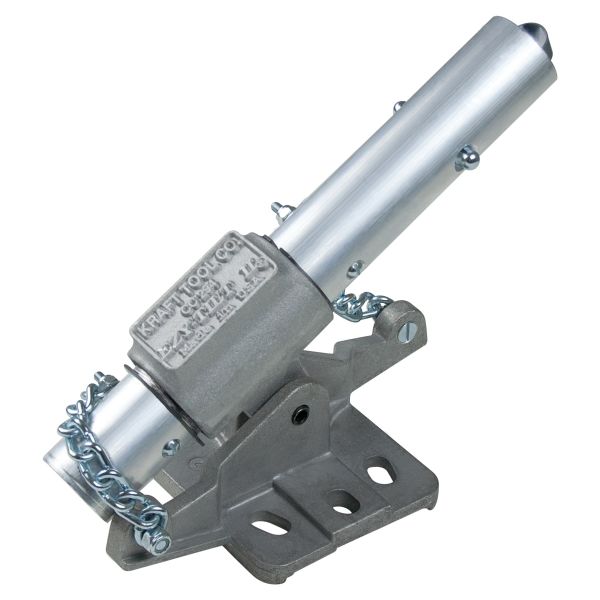

Kraft Tool CC294 EZY-Tilt II Float Bracket 6 Hole

The Kraft Tool EZY-Tilt II is a 6-hole double-tilt aluminum float bracket for fresnos and bull floats, with a chain stop and 1-3/8 or 1-3/4 in button-handle fit.

Double tilt, one-to-one handle-to-blade pitch
Chain stop against over-extension
Fits 1-3/8 in or 1-3/4 in button handles

$69.18

Drop Shipped

Details

Kraft Tool CC294 EZY-Tilt II Float Bracket 6 Hole

The Kraft Tool EZY-Tilt II is a 6-hole double-tilt button bracket for fresnos and bull floats. Lightweight aluminum construction, a one-to-one handle-to-blade pitch, and a chain that stops the bracket from over-extending so you are not bending and lifting to change pitch. It takes 1-3/8 in or 1-3/4 in snap/button bull float handles and can be used on 2-hole or 4-hole floats.

Key Features

Rugged lightweight aluminum bracket
Double-tilt action from the handle, no extra bending
Chain eliminates over-extension of the bracket
Fits 1-3/8 in or 1-3/4 in button bull float handles
6-hole pattern for 2-hole or 4-hole floats
Used on fresnos and bull floats

Applications

Bull float pitch control
Fresno tilt control
2-hole or 4-hole float decks
Button-handle bull float setups

Technical Specifications

Property	Value
Product	EZY-Tilt II float bracket
Action	Double tilt
Pitch control	One-to-one handle to blade
Over-travel	Chain stop
Handle fit	1-3/8" or 1-3/4" button / snap
Hole pattern	6-hole (2- or 4-hole floats)
Material	Aluminum
Use	Fresnos and bull floats
Package	Bracket
Manufacturer	Kraft Tool Co.
