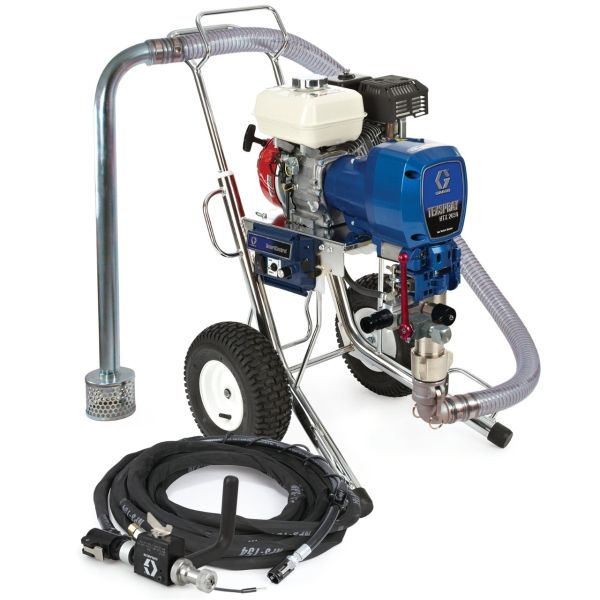

Graco Texspray HTX 2030 Complete Gas Texture Sprayer 258740
Graco TexSpray HTX 2030 Complete is a gas texture sprayer for aggregate coatings, elastomerics, acrylics, and drywall mud.
- Sprays interior and exterior texture, aggregate up to 2.0 mm
- Honda 6.5 hp gas engine, 3.0 gpm high-output texture pump
- Complete with FreeFlo inline gun and 50 ft hose
$15,900.00
Graco TexSpray HTX 2030 Complete Gas Texture Sprayer
Graco TexSpray HTX 2030 is a gas mechanical texture sprayer for large exterior jobs: aggregate coatings, elastomerics, acrylics, drywall mud, EIFS, and finish coats. A Honda 6.5 hp engine drives the high-output texture pump at 3.0 gpm, with extra-large passages for aggregate up to 2.0 mm. The Complete package ships with the FreeFlo inline gun and 50 ft hose so the crew can spray from the cart.
Key Features
- Honda 6.5 hp engine for jobs without a 120V circuit
- Extra-large passages for aggregate up to 2.0 mm
- PowerFlo control stops and starts flow at the pump
- No-tools hose connections at pump and gun
- FreeFlo inline gun with oversized fluid path
- 55 gal suction set for drum work
Applications
- Exterior aggregate and elastomeric coatings
- EIFS and synthetic stucco finish coats
- Drywall mud, orange peel, splatter, knockdown
- Deck coatings and acrylics
- Jobs away from building power
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | Graco |
| Product | TexSpray HTX 2030 Complete |
| Part Number | 258740 |
| Type | Gas mechanical texture sprayer |
| Engine | Honda 200 cc (6.5 hp) |
| Max flow | 3.0 gpm (11.4 lpm) |
| Max pressure | 1000 psi (70 bar) |
| Max aggregate | 2.0 mm |
| Max tip | 0.071 in |
| Pump | High-output piston texture pump |
| Includes | FreeFlo gun, 50 ft hose, 4-10 mm nozzles, fine-finish kit, RAC X 671, 55 gal suction set |
| Weight | 155 lb (70 kg) |
Product documents: Graco Texture Sprayers Brochure (PDF)
Frequently Asked Questions
What is the HTX 2030 Complete 258740?
A gas-powered TexSpray texture sprayer with FreeFlo inline gun and 50 ft hose. Graco lists 3.0 gpm, a Honda 6.5 hp engine, and 1000 psi on the high-output texture pump.
What materials will it spray?
Interior and exterior texture with aggregate up to 2.0 mm, including elastomerics, acrylics, drywall mud, EIFS, and finish coats.
Does it include the gun and hose?
Yes. 258740 is the Complete package: FreeFlo inline gun, 50 ft hose, 4/6/8/10 mm nozzles, fine-finish kit, RAC X LTX 671 tip, and 55 gal suction set.
Can it spray paint at airless paint pressure?
Not in this configuration. The stock high-output texture pump is 1000 psi. A separate Top Coat Pump kit (24B140) is required for high-pressure architectural coatings.
Is this electric?
No. It is gas, Honda 6.5 hp, for sites without a 120V circuit at the sprayer.
