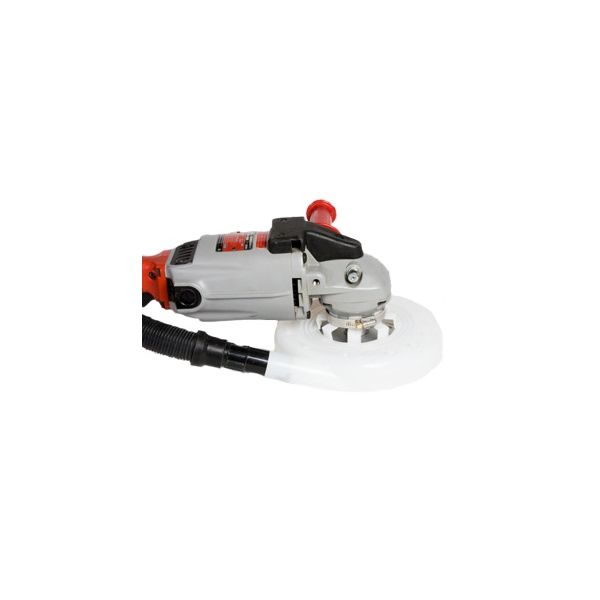

Dust Muzzle Ultra 8in DMU8CS
Dust Muzzle Ultra DMU8CS is a universal side-exhaust shroud for 7-8 in electric and pneumatic angle grinders. Side pickup uses the wheel's centrifugal force so dust leaves the port with less vacuum than a top-mount shroud.
- Capture is up to 99% on a 2 hp industrial vacuum
- Shroud is used wet or dry with cups, pads, and discs
- Side exhaust is used on 7-8 in grinders
$29.50
Availability:
Out of stock
Dust Muzzle Ultra DMU8CS
Dust Muzzle Ultra DMU8CS is a universal side-exhaust shroud for 7-8 in electric and pneumatic angle grinders. Side pickup uses the wheel's centrifugal force so dust leaves the port with less vacuum than a top-mount shroud. Product code is DMU8CS. Capture is up to 99% on a 2 hp industrial vacuum. Wet or dry work is used with cups, pads, and discs. Adapter ring is used on smaller bearing housings.
Key Features
- Universal side-exhaust shroud is used on 7-8 in angle grinders
- Side pickup uses the wheel's centrifugal force
- Capture is up to 99% on a 2 hp industrial vacuum
- Shroud is used wet or dry with cups, pads, and discs
- Flexible adapter ring is used on smaller bearing housings
Applications
- 7-8 in grinders that need a side-exhaust dust shroud
- Diamond cup grinding that needs point-of-origin capture
- Wet or dry sanding and polishing that needs a vacuum port
Technical Specifications
| Property | Value |
|---|---|
| Type | Universal side-exhaust grinder shroud |
| Shroud | 7-8 in |
| Product code | DMU8CS |
| Grinders | Electric or pneumatic 7-8 in |
| Pickup | Side exhaust, centrifugal |
| Capture | Up to 99% on a 2 hp industrial vacuum |
| Wheels | Cups, pads, discs, wet or dry |
| Vac hose | 1 in into the port, or 1-1/2 in over the port |
| Adapter | Flexible ring for smaller bearing housings |
Product documents: Dust Muzzle Ultra (manufacturer)
Frequently Asked Questions
What grinders is Dust Muzzle Ultra DMU8CS used on?
Electric and pneumatic 7-8 in angle grinders.
What shroud size is Dust Muzzle Ultra DMU8CS?
The shroud is a 7-8 in Ultra, code DMU8CS.
What pickup does Dust Muzzle Ultra DMU8CS use?
Side exhaust. The wheel's centrifugal force sends dust out the port, so the shroud needs less vacuum than a top-mount.
What capture does Dust Muzzle Ultra DMU8CS have?
Up to 99% on a 2 hp industrial vacuum.
What wheels does Dust Muzzle Ultra DMU8CS hold?
Diamond cups, sanding discs, silicon carbide wheels, and polishing pads, wet or dry.
What hose does Dust Muzzle Ultra DMU8CS fit?
A 1 in hose into the exhaust port, or a 1-1/2 in hose over the port.
