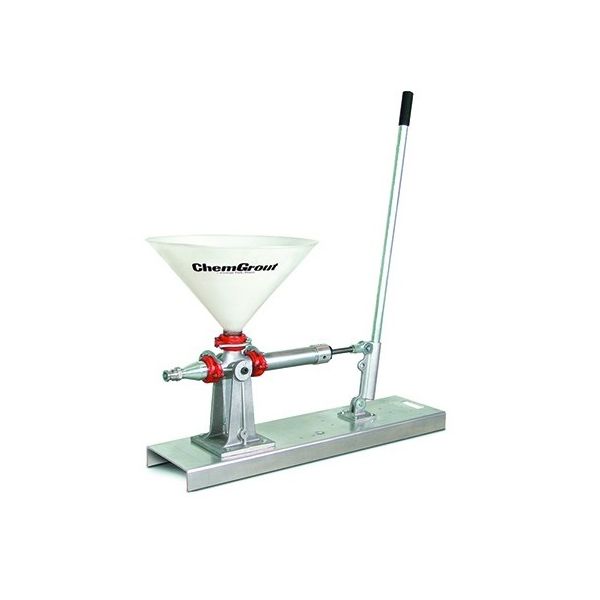

ChemGrout CG050M 2" Manual Piston Grout Pump
The ChemGrout CG050M-2 is a hand-operated 2 in. piston grout pump for smaller jobs with no air or electric on site.
- Manual 2 in. piston, no compressor required
- Door frames, machine bases, undersealing, and well encasements
- 2 to 3 GPM at 200 PSI; 5 gallon hopper, 52 lb skid
$3,060.87
Availability:
In stock
Drop Shipped ChemGrout CG050M-2 Manual Piston Grout Pump
The ChemGrout CG050M-2 is a hand-operated 2 in. piston grout pump for smaller jobs with no air or electric on site. The aluminum skid holds a 5 gallon hopper for door frames, machine bases, undersealing, and well encasements. The hopper ties straight to pump suction. The crew works the piston by hand, so a remote or confined placement does not wait on a compressor.
Key Features
- Manually powered 2 in. positive-displacement piston (CG050M)
- No air compressor or electric motor required
- Lightweight aluminum skid, 52 lb
- 5 gallon hopper tied directly to pump suction
- Disassembles without tools for cleaning
- Published discharge head exceeding 150 ft
- Ships with 12.5 ft grout hose and spare piston cups
Applications
- Door frames, window frames, and hollow metal filling
- Precast and machine-base grouting
- Undersealing and slab raising
- Marine and underwater grouting
- Well encasements
- Remote or confined sites with no air or electric power
Technical Specifications
| Property | Value |
|---|---|
| Manufacturer | ChemGrout |
| Model | CG050M |
| Pump | 2 in. positive-displacement piston |
| Power | Manual |
| Max output | 2-3 GPM (7-11 LPM) |
| Max pressure | 200 PSI (14 Bar) |
| Hopper | 5 gal |
| Discharge head | >150 ft |
| Mounting | Skid, aluminum |
| Dimensions | 44 in. L x 11 in. W x 31 in. H |
| Weight | 52 lb |
| Included | 12.5 ft grout hose, spare piston cups |
Product documents: Mini-Series Compact Grouters (PDF)
Frequently Asked Questions
Does the ChemGrout CG050M-2 need a compressor?
No. The ChemGrout CG050M-2 is hand-operated. There is no air compressor or electric motor on this pump.
Is the ChemGrout CG050M-2 for door frames and machine bases?
Yes. The ChemGrout CG050M-2 is the hand-operated 2 in. piston for smaller door-frame, machine-base, undersealing, and well-encasement placements.
Why is the ChemGrout CG050M-2 hopper 5 gallons?
The 5 gallon hopper on the ChemGrout CG050M-2 ties straight to pump suction so a hand piston keeps a continuous feed on a small placement.
When should I use the ChemGrout CG050M-2 instead of the ChemGrout CG-050?
Use the ChemGrout CG050M-2 when there is no air or electric on site. The ChemGrout CG-050 is the air-powered 2 in. piston when a compressor is available.
Can the ChemGrout CG050M-2 place grout on a vertical lift?
Yes. ChemGrout publishes a discharge head exceeding 150 ft for the ChemGrout CG050M-2.
Will the ChemGrout CG050M-2 pump pre-packaged grouts?
Yes. ChemGrout rates the ChemGrout CG050M-2 for high-viscosity slurries and most pre-packaged grouts on smaller jobs.
